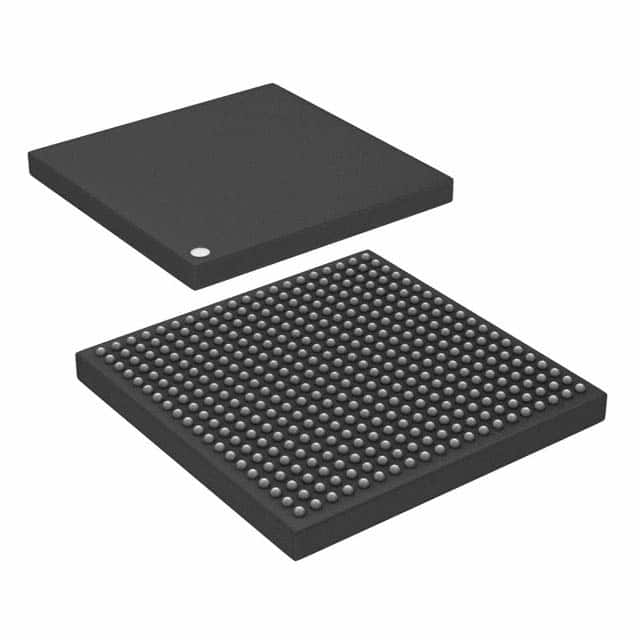

MCIMX6X1EVO10AB The NXP Semiconductors MCIMX6X1EVO10AB is a 32-bit microprocessor featuring dual ARM Cortex-A9 and Cortex-M4 cores. It operates at speeds up to 1GHz and is housed in a 400-MAPBGA package.
Mfr Part #:

MCIMX6X1EVO10AB

Available from 3 distributors
Mfr Name: NXP Semiconductors
NXP Semiconductors
The NXP Semiconductors MCIMX6X1EVO10AB is a 32-bit microprocessor featuring dual ARM Cortex-A9 and Cortex-M4 cores. It operates at speeds up to 1GHz and is housed in a 400-MAPBGA package.
✓ Total Stock: 16,159 pcs
$ Price Range: $11.19

MCIMX6X1EVO10AB Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
10,985 pcs
On Request
10985 pcs On Request 1 On Request On Request On Request On Request On Request
Flip Electronics ✓
Non-Authorised Inventory information
4,050 pcs
On Request
4050 pcs On Request 1 On Request On Request On Request On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,124 pcs
On Request
1124 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MCIMX6X1EVO10AB Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Co
Core Processor
Display & Interface Controllers
Ethernet
Graphics Acceleration
Lead Spacing
Mounting Type
Number of Cores
Operating Temperature
RAM Controllers
Security Features
Speed
Supplier Device Package
Supplier Package
Tape & Reel
USB
Voltage
View Similar Products (0)

MCIMX6X1EVO10AB Description

Short technical summary and product information.

The NXP Semiconductors MCIMX6X1EVO10AB is a powerful 32-bit microprocessor designed for embedded applications. It integrates dual-core processing with ARM Cortex-A9 and ARM Cortex-M4 cores, offering versatile performance for demanding tasks. This processor supports clock speeds up to 1GHz, enabling efficient execution of complex operations.



The MCIMX6X1EVO10AB features a comprehensive set of interfaces, including dual 10/100/1000Mbps Ethernet ports, multiple USB 2.0 ports with PHY, and support for Keypad and LCD displays. It also includes RAM controllers for LPDDR2, LVDDR3, and DDR3 memory types.



Packaged in a 400-MAPBGA (17x17) format, this microprocessor is designed for surface mount applications. It operates within a temperature range of -20°C to 105°C (TJ) and utilizes multiple voltage levels including 1.8V, 2.5V, 2.8V, and 3.15V.



Security features such as A-HAB, ARM TZ, CAAM, CSU, SNVS, System JTAG, and TVDECODE are integrated, providing robust protection for sensitive data and system integrity. The processor also includes multimedia capabilities with NEON MPE.

MCIMX6X1EVO10AB Quick Information

Product Type: Microprocessor
Canonical Name: NXP Semiconductors MCIMX6X1EVO10AB Microprocessor
Subcategory: Embedded

MCIMX6X1EVO10AB Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MCIMX6X1EVO10AB Estimated Pricing

Qty Low High
1+ $11.19 $11.19

Estimated market price range - modelled values for guidance only, not live distributor offers.

MCIMX6X1EVO10AB Features

  • Dual ARM Cortex-A9 and Cortex-M4 cores.
  • Clock speeds up to 1GHz.
  • Integrated Ethernet and USB interfaces.
  • Supports LPDDR2, LVDDR3, DDR3 RAM.
  • 400-MAPBGA surface mount package.

MCIMX6X1EVO10AB Applications

  • Suitable for embedded system designs.
  • Ideal for multimedia applications.
  • Supports display and keypad interfaces.
  • Offers robust security features.
  • Connectivity via Ethernet and USB.

MCIMX6X1EVO10AB FAQs

7 frequently asked questions generated from this part’s specifications.
What are the core processors in the MCIMX6X1EVO10AB?

The MCIMX6X1EVO10AB features ARM Cortex-A9 and ARM Cortex-M4 cores.

How many cores does the MCIMX6X1EVO10AB have?

This microprocessor has 2 cores.

What are the operating speeds for the MCIMX6X1EVO10AB?

The operating speeds are 227MHz and 1GHz.

What is the operating voltage range for this microprocessor?

The operating voltage is 1.8V, 2.5V, 2.8V, and 3.15V.

What is the operating temperature range of the MCIMX6X1EVO10AB?

The operating temperature range is -20°C to 105°C (TJ).

What package type is the MCIMX6X1EVO10AB supplied in?

It is supplied in a 400-LFBGA package, with the supplier package listed as 400-MAPBGA (17x17).

Does the MCIMX6X1EVO10AB have graphics acceleration?

No, the MCIMX6X1EVO10AB does not have graphics acceleration.
