MCIMX6X1EVK10AB The NXP Semiconductors MCIMX6X1EVK10AB is a 32-bit microprocessor with dual ARM Cortex cores. It offers speeds up to 1GHz and supports various interfaces.
Mfr Part #:

MCIMX6X1EVK10AB

Available from 1 distributors
Mfr Name: NXP Semiconductors
NXP Semiconductors
The NXP Semiconductors MCIMX6X1EVK10AB is a 32-bit microprocessor with dual ARM Cortex cores. It offers speeds up to 1GHz and supports various interfaces.
✓ Total Stock: 30,609 pcs
$ Price Range: $11.19

MCIMX6X1EVK10AB Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
30,609 pcs
On Request
30609 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MCIMX6X1EVK10AB Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Co
Core Processor
Display & Interface Controllers
Ethernet
Graphics Acceleration
Lead Spacing
Mounting Type
Number of Cores
Operating Temperature
RAM Controllers
Security Features
Speed
Supplier Device Package
USB
Voltage
View Similar Products (0)

MCIMX6X1EVK10AB Description

Short technical summary and product information.

The NXP Semiconductors MCIMX6X1EVK10AB is a powerful 32-bit microprocessor designed for embedded applications. It features dual core processing with ARM Cortex-A9 and ARM Cortex-M4 cores, capable of reaching speeds of up to 1GHz. This processor supports a wide range of operating voltages from 1.8V to 3.15V and operates within a junction temperature range of -20°C to 105°C.



Connectivity and interface options include dual Ethernet ports supporting 10/100/1000Mbps, multiple USB 2.0 ports, and support for LPDDR2, LVDDR3, and DDR3 RAM controllers. It also includes display and interface controllers for Keypad and LCD, along with graphics acceleration capabilities. Security features such as A-HAB, ARM TZ, CAAM, CSU, SNVS, System JTAG, and TVDECODE are integrated for enhanced protection.

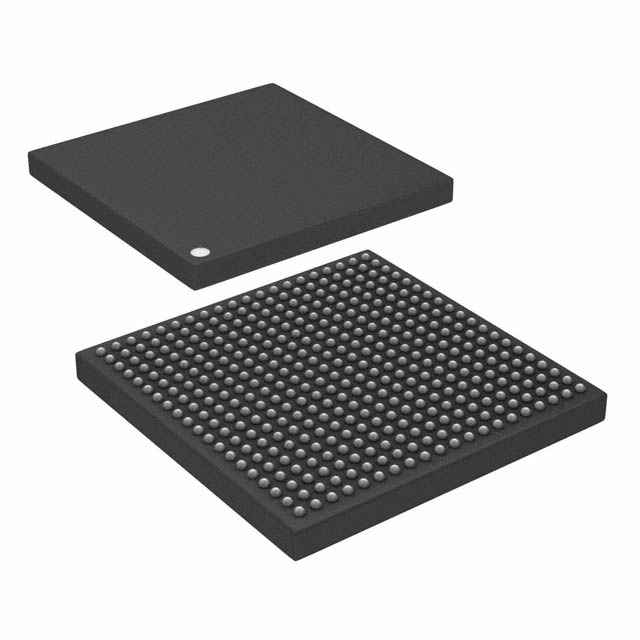

This microprocessor is housed in a 400-pin LFBGA package, with a supplier device package of 400-MAPBGA (14x14), and utilizes a surface mount type. It is designed for applications requiring robust processing power and integrated peripherals.

MCIMX6X1EVK10AB Quick Information

Product Type: Microprocessor
Canonical Name: NXP Semiconductors MCIMX6X1EVK10AB Microprocessor
Subcategory: Embedded

MCIMX6X1EVK10AB Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MCIMX6X1EVK10AB Estimated Pricing

Qty Low High
1+ $11.19 $11.19

Estimated market price range - modelled values for guidance only, not live distributor offers.

MCIMX6X1EVK10AB Features

  • Dual ARM Cortex-A9 and Cortex-M4 cores.
  • Processing speeds up to 1GHz.
  • Supports multiple RAM types including DDR3.
  • Integrated dual Gigabit Ethernet controllers.
  • Surface mount 400-pin LFBGA package.

MCIMX6X1EVK10AB Applications

  • Embedded system processing.
  • Automotive control units.
  • Industrial automation systems.
  • Consumer electronics devices.
  • Network infrastructure equipment.

MCIMX6X1EVK10AB FAQs

6 frequently asked questions generated from this part’s specifications.
What are the core processors in the MCIMX6X1EVK10AB?

The MCIMX6X1EVK10AB features ARM Cortex-A9 and ARM Cortex-M4 cores.

What is the operating speed of the MCIMX6X1EVK10AB?

The operating speeds are 227MHz and 1GHz.

What is the operating voltage range for this microprocessor?

It operates within a voltage range of 1.8V to 3.15V.

What is the operating temperature range for the MCIMX6X1EVK10AB?

The operating temperature range is -20°C to 105°C (TJ).

What package type is the MCIMX6X1EVK10AB?

The package is a 400-LFBGA, with a supplier device package of 400-MAPBGA (14x14).

Does the MCIMX6X1EVK10AB have Ethernet connectivity?

Yes, it features two Ethernet ports supporting 10/100/1000Mbps.
