Mfr Part #:

MCIMX6U7CVM08AC

The NXP Semiconductors MCIMX6U7CVM08AC is a dual-core ARM Cortex-A9 microprocessor operating at up to 800 MHz. It features integrated graphics and video processing capabilities.

✓ Total Stock: 33,238 pcs

$ Price Range: $11.19

MCIMX6U7CVM08AC Available from 6 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Components Technology Group, Inc. ✓ Non-Authorised Inventory information	25,111 pcs On Request	25111 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
MW.FEP S.p.A. ✓ Non-Authorised Inventory information	4,303 pcs On Request	4303 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Xingangxin ✓ Non-Authorised Inventory information	1,794 pcs On Request	1794 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Optech Co.,Limited ✓ Non-Authorised Inventory information	1,140 pcs On Request	1140 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Fe Components ✓ Non-Authorised Inventory information	660 pcs On Request	660 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Flip Electronics ✓ Non-Authorised Inventory information	230 pcs On Request	230 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

MCIMX6U7CVM08AC Description

Short technical summary and product information.

The NXP Semiconductors MCIMX6U7CVM08AC is an i.MX 6DualLite applications processor designed for high-performance industrial and medical applications. It features dual ARM Cortex-A9 cores running at speeds up to 800 MHz, offering a powerful processing solution for graphically rich and responsive user interfaces.

This processor integrates advanced 2D and 3D graphics processors, 1080p video processing, and comprehensive power management. It supports a 32/64-bit DDR3/DDR3L/LPDDR2-800 memory interface and includes numerous interfaces for peripherals such as WLAN, Bluetooth, GPS, displays, and camera sensors. The MCIMX6U7CVM08AC also boasts features like keypad and LCD controllers, multiple USB 2.0 ports with PHY, and 10/100/1000Mbps Ethernet connectivity.

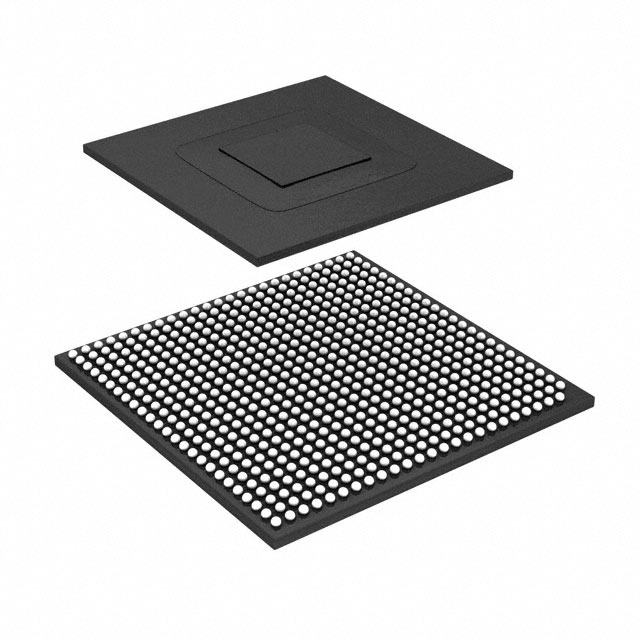

Packaged in a 624-MAPBGA (21x21 mm) surface-mount configuration, this microprocessor operates within a temperature range of -40°C to 105°C (TA). It supports multiple voltage levels including 1.8V, 2.5V, 2.8V, and 3.3V, making it versatile for various design requirements. Security features include ARM TZ, Boot Security, Cryptography, and Tamper Detection, ensuring robust system protection.

MCIMX6U7CVM08AC Quick Information

Product Type: Microprocessor

Series: i.MX 6Solo/6DualLite

Canonical Name: NXP Semiconductors i.MX 6DualLite Applications Processor

Subcategory: Applications Processor

MCIMX6U7CVM08AC Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

MCIMX6U7CVM08AC Estimated Pricing

Qty	Low	High
1+	$11.19	$11.19

Estimated market price range - modelled values for guidance only, not live distributor offers.

MCIMX6U7CVM08AC Features

Dual ARM Cortex-A9 cores at 800MHz.
Integrated 2D/3D graphics acceleration.
Supports DDR3/DDR3L/LPDDR2 memory.
Multiple USB 2.0 and Gigabit Ethernet ports.
Wide operating temperature range of -40°C to 105°C.

MCIMX6U7CVM08AC Applications

High-performance industrial applications.
Advanced medical device interfaces.
Graphically rich user interfaces.
Multimedia processing systems.

MCIMX6U7CVM08AC FAQs

6 frequently asked questions generated from this part’s specifications.

What is the core processor of the MCIMX6U7CVM08AC?

The core processor is ARM® Cortex®-A9.

What is the operating speed of the MCIMX6U7CVM08AC?

The operating speed is 800 MHz.

How many cores does the MCIMX6U7CVM08AC have?

It has 2 cores.

What type of package is the MCIMX6U7CVM08AC in?

It is in a 624-MAPBGA (21x21 mm) package.

What is the operating temperature range for this microprocessor?

The operating temperature range is -40°C to 105°C (TA).

What are the supported voltage levels for the MCIMX6U7CVM08AC?

It supports 1.8V, 2.5V, 2.8V, and 3.3V.

Category	Microprocessors
Manufacturer Name	NXP Semiconductors
Co	Multimedia; NEON™ SIMD
Core Processor	Arm® Cortex®-A9
Display & Interface Controllers	Keypad, LCD
Ethernet	10/100/1000Mbps
Frequency	800 MHz
Graphics Acceleration	Yes
Memory Interface	DDR3/DDR3L/LPDDR2-800
Mounting Type	Surface Mount
Number of Cores	2
Operating Temperature	-40°C ~ 105°C (TA)
RAM Controllers	LPDDR2, LVDDR3, DDR3
Security Features	ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC, Tamper Detection
Speed	800MHz
Supplier Device Package	624-MAPBGA (21x21)
USB	USB 2.0 + PHY (4)
Voltage	1.8V, 2.5V, 2.8V, 3.3V
