Mfr Part #:

MCIMX535DVV1C

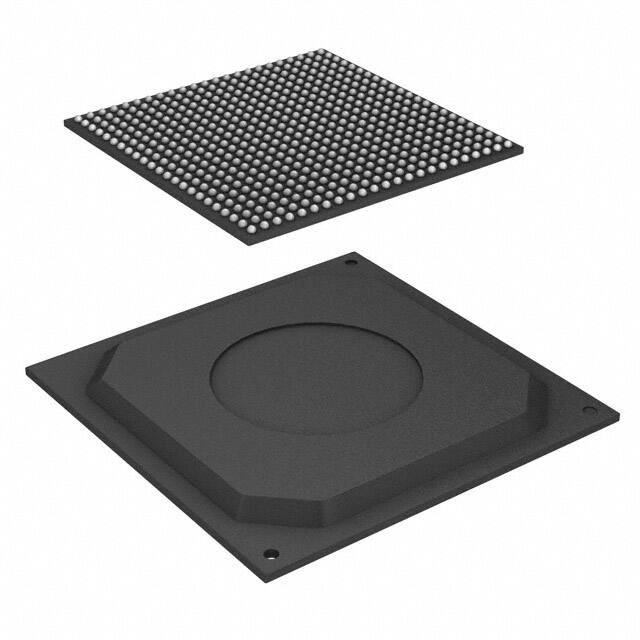

The NXP Semiconductors MCIMX535DVV1C is a multimedia application processor based on the ARM Cortex-A8 core, operating at up to 1.2 GHz. It is housed in a 529-FBGA package.

✓ Total Stock: 8,124 pcs

$ Price Range: $11.19

MCIMX535DVV1C Available from 3 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Xingangxin ✓ Non-Authorised Inventory information	5,450 pcs On Request	5450 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Components Technology Group, Inc. ✓ Non-Authorised Inventory information	2,524 pcs On Request	2524 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Smaxon Electronics ✓ Non-Authorised Inventory information	150 pcs On Request	150 pcs	On Request	1	On Request	On Request	20+	On Request	On Request

MCIMX535DVV1C Description

Short technical summary and product information.

The i.MX53xD multimedia application processor from NXP Semiconductors, specifically the MCIMX535DVV1C, is built around the ARM Cortex™-A8 core, capable of operating at clock speeds as high as 1.2 GHz. This processor is optimized for low power consumption and high performance, making it suitable for a wide range of consumer electronics.

Key features include support for DDR2/LVDDR2-800, LPDDR2-800, or DDR3-800 DRAM memories. It offers integrated graphics acceleration, display and interface controllers for Keypad and LCD, multiple USB 2.0 ports, 10/100Mbps Ethernet, and SATA 1.5Gbps support. Advanced security features such as ARM TZ, Boot Security, Cryptography, and Tamper Detection are also included.

The MCIMX535DVV1C is supplied in a 529-FBGA (19x19 mm) surface mount package. It operates within a temperature range of -20°C to 85°C (TC) and supports multiple voltage levels including 1.3V, 1.8V, 2.775V, and 3.3V.

This processor is designed for applications such as tablets, smart devices, netbooks, nettops, thin clients, media phones, internet monitors, and high-end mobile internet devices.

MCIMX535DVV1C Quick Information

Product Type: Microprocessor

Canonical Name: i.MX53xD Multimedia Application Processor

Subcategory: Embedded Processors

MCIMX535DVV1C Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

MCIMX535DVV1C Estimated Pricing

Qty	Low	High
1+	$11.19	$11.19

Estimated market price range - modelled values for guidance only, not live distributor offers.

MCIMX535DVV1C Features

ARM Cortex-A8 core processor.
Operates at clock speeds up to 1.2 GHz.
Supports DDR2, LPDDR2, and DDR3 memory.
Integrated graphics and display controllers.
529-FBGA surface mount package.

MCIMX535DVV1C Applications

Suitable for tablets and smart devices.
Used in netbooks and nettops.
Ideal for thin clients and media phones.
Designed for mobile internet devices.

MCIMX535DVV1C FAQs

6 frequently asked questions generated from this part’s specifications.

What is the core processor of the MCIMX535DVV1C?

The core processor is ARM® Cortex®-A8.

What is the clock speed of the MCIMX535DVV1C?

The clock speed is 1.2 GHz.

How many cores does the MCIMX535DVV1C have?

It has 1 core.

What memory interfaces does the MCIMX535DVV1C support?

It supports DDR2/LVDDR2-800, LPDDR2-800, or DDR3-800.

What is the operating temperature range for the MCIMX535DVV1C?

The operating temperature is -20°C to 85°C (TC).

What type of package is the MCIMX535DVV1C in?

It is in a 529-FBGA (19x19) package.

Category	Microprocessors
Manufacturer Name	NXP Semiconductors
Co	NEON™ SIMD
Core Processor	ARM® Cortex®-A8
Display & Interface Controllers	Keypad, LCD
Ethernet	10/100Mbps (1)
Graphics Acceleration	Yes
Lead Spacing	19 mm
Mounting Type	Surface Mount
Number of Cores	1
Operating Temperature	-20°C ~ 85°C (TC)
RAM Controllers	DDR2/LVDDR2-800, LPDDR2-800, or DDR3-800
SATA	SATA 1.5Gbps (1)
Security Features	ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC, Tamper Detection
Speed	1.2 GHz
Supplier Device Package	529-FBGA (19x19)
Supplier Package	529-FBGA (19x19)
Tape & Reel	No
USB	USB 2.0 (2), USB 2.0 + PHY (2)
Voltage	1.3V, 1.8V, 2.775V, 3.3V
