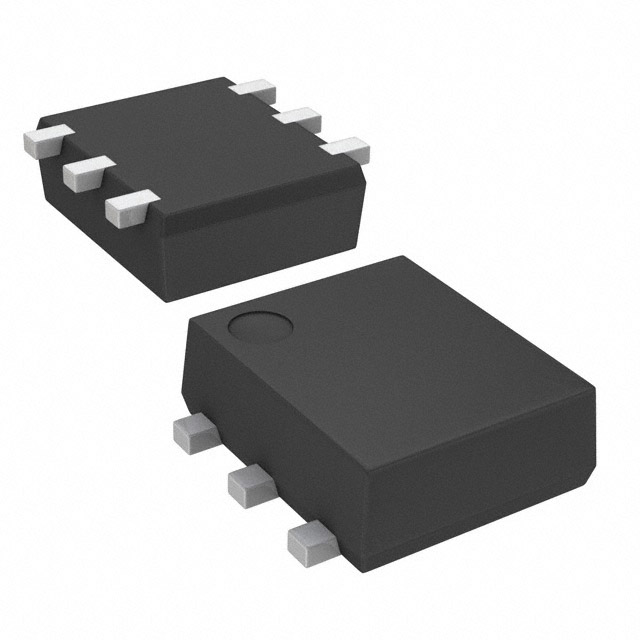

The MCH6613-TL-E is a complementary dual MOSFET array from On Semiconductor, designed for high-density mounting. This device integrates both N-channel and P-channel MOSFETs within a single 6-SMD, Flat Leads (MCPH6) package.
Key electrical specifications include a Drain to Source Voltage (Vdss) of 30V for the N-channel and -30V for the P-channel. The continuous drain current is rated at 350mA for the N-channel and -200mA for the P-channel. It features excellent ON-resistance characteristics, with Rds(on) as low as 3.7Ω at 80mA and 4V for the N-channel. The device supports 1.5V drive, indicating it is suitable for logic-level gate applications.
With a power dissipation of 800mW and an operating temperature up to 150°C, the MCH6613-TL-E is built for demanding environments. The package is designed for surface mounting, facilitating automated assembly processes. The complementary nature of the N-channel and P-channel MOSFETs makes this array ideal for applications requiring integrated switching solutions.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Drain to Source Voltage is 30V for the N-channel and -30V for the P-channel.
The maximum continuous drain current is 350mA for the N-channel and -200mA for the P-channel.
The Rds On is 3.7Ω maximum at 80mA and 4V for the N-channel.
The MCH6613-TL-E is supplied in a 6-SMD, Flat Leads (MCPH6) package.
The operating temperature range is -55°C to +150°C.
