| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
51,000 pcs
|
51000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Storage Temperature | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The MCH3486-TL-W is a single N-Channel Power MOSFET from ON Semiconductor, designed with a 60V drain-to-source breakdown voltage and a continuous drain current rating of 2A.
This MOSFET offers a low on-state resistance, with a maximum of 137mOhm at 1A and 10V gate-source voltage. It supports a 4V drive capability and includes an ESD diode-protected gate for enhanced reliability. The device operates at a maximum junction temperature of 150°C and has a power dissipation of 1W when mounted on a ceramic substrate.

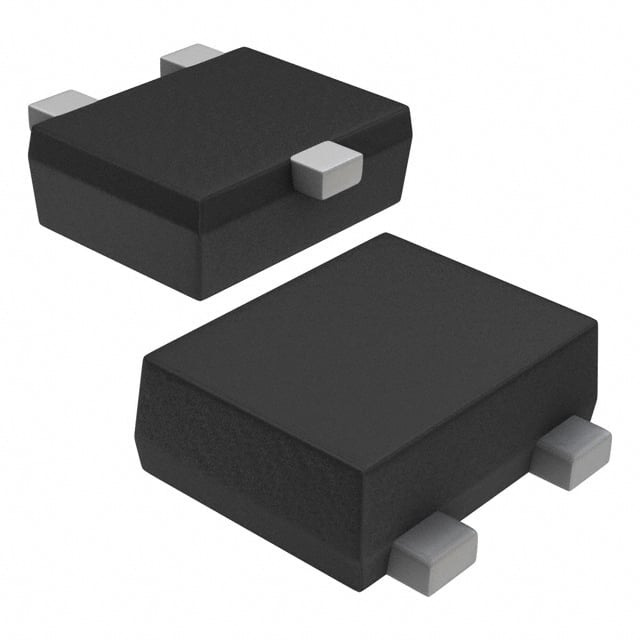

Packaged in a small surface mount SOT-23-3 Flat Leads (SC-70FL/MCPH3) package, the MCH3486-TL-W is suitable for space-constrained applications. Its electrical characteristics include an input capacitance of 310 pF and a total gate charge of 7 nC, facilitating efficient switching.
The component is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-to-source voltage is 60V.
The continuous drain current is 2A.
The maximum Rds On is 137mOhm at 1A drain current and 10V gate-source voltage.
The operating junction temperature is up to 150°C.
It is supplied in a SOT-23-3 Flat Leads package.
Yes, it is RoHS3 Compliant.
