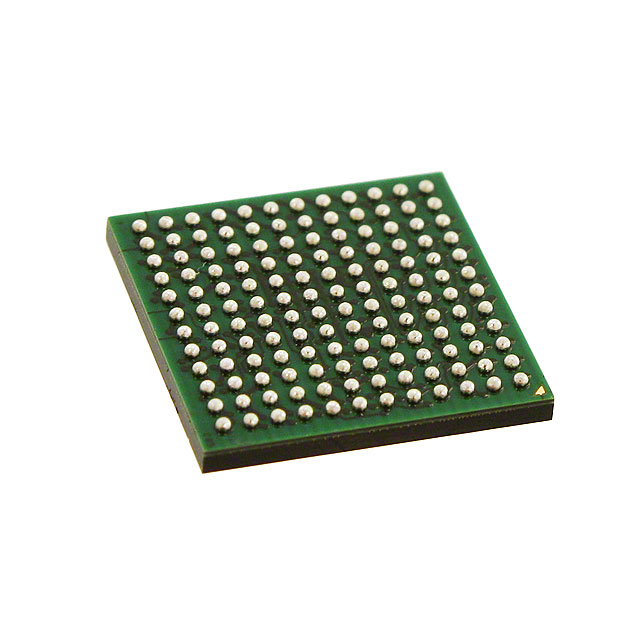

MCF52259CVN80 The NXP Semiconductors MCF52259CVN80 is a 32-bit microcontroller featuring a Coldfire V2 core operating at 80MHz. It offers 512KB of FLASH program memory and 64KB of RAM.
Mfr Part #:

MCF52259CVN80

Available from 3 distributors
Mfr Name: NXP Semiconductors
NXP Semiconductors
The NXP Semiconductors MCF52259CVN80 is a 32-bit microcontroller featuring a Coldfire V2 core operating at 80MHz. It offers 512KB of FLASH program memory and 64KB of RAM.
✓ Total Stock: 3,232 pcs
$ Price Range: $6.40

MCF52259CVN80 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
3,121 pcs
On Request
3121 pcs On Request 1 On Request On Request On Request On Request On Request
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
66 pcs
On Request
66 pcs On Request 1 On Request On Request 11+ On Request On Request
Flip Electronics ✓
Non-Authorised Inventory information
45 pcs
On Request
45 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MCF52259CVN80 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connectivity
Core Processor
Core Size
Data Converters
Mounting Type
Number of I
Operating Temperature
Oscillator Type
Peripherals
Program Memory Size
Program Memory Type
RAM Size
Speed
Supplier Device Package
Supplier Package
Voltage
View Similar Products (0)

MCF52259CVN80 Description

Short technical summary and product information.

The MCF52259CVN80 from NXP Semiconductors is a high-performance 32-bit microcontroller based on the Coldfire V2 core, operating at a frequency of 80MHz. This device is designed for complex embedded systems, offering a robust set of peripherals and connectivity options.



Key electrical specifications include 512KB of FLASH program memory and 64KB of RAM, supporting efficient data handling and processing. It operates within a supply voltage range of 3V to 3.6V and features an internal oscillator for reliable performance. The microcontroller includes integrated DMA, LVD, POR, PWM, and WDT peripherals, along with extensive connectivity options such as CANbus, Ethernet, I2C, QSPI, UART/USART, and USB OTG.



This microcontroller is housed in a 144-pin MAPBGA surface-mount package, making it suitable for compact and space-constrained designs. The operating temperature range is -40°C to 85°C (TA). Its versatile feature set makes it suitable for applications in industrial automation, networking, automotive, consumer electronics, and medical devices.

MCF52259CVN80 Quick Information

Product Type: Microcontroller
Canonical Name: MCF52259CVN80 Microcontroller
Subcategory: Embedded

MCF52259CVN80 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MCF52259CVN80 Estimated Pricing

Qty Low High
1+ $6.40 $6.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

MCF52259CVN80 Features

  • High-performance 80MHz Coldfire V2 core.
  • 512KB FLASH and 64KB RAM onboard.
  • Wide 3V to 3.6V operating voltage.
  • Extensive connectivity options available.
  • Compact 144-MAPBGA surface-mount package.

MCF52259CVN80 Applications

  • Ideal for industrial automation systems.
  • Suitable for networking equipment.
  • Used in automotive applications.
  • Applicable to consumer electronics.
  • Designed for medical devices.

MCF52259CVN80 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the core processor of the MCF52259CVN80?

The core processor is Coldfire V2.

What is the operating voltage range for this microcontroller?

The operating voltage is 3V to 3.6V.

What is the program memory size and type?

It has 512KB of FLASH program memory.

How much RAM does the MCF52259CVN80 have?

It has 64KB of RAM.

What are the key peripherals included?

Peripherals include DMA, LVD, POR, PWM, and WDT.

What connectivity options are supported?

Connectivity options include CANbus, EBI/EMI, Ethernet, I2C, QSPI, UART/USART, and USB OTG.

What is the package type and mounting style?

The package is 144-MAPBGA and it is a surface mount device.
