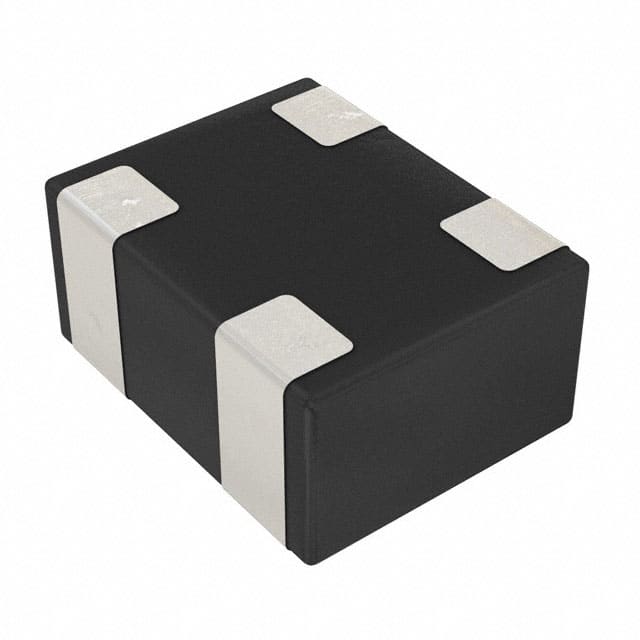

The Taiyo Yuden MCF08062G120-T is a multilayer common mode choke coil from the MCF series, engineered for effective noise suppression in high-speed differential signal interfaces. This component provides 12 Ω impedance at 100MHz, a maximum DC resistance of 2.5 Ω, and a rated current of 130mA with a maximum voltage rating of 5V. It operates within a temperature range of -40°C to +85°C.
The choke coil features a compact SMD 0806 case size with dimensions of 0.85mm x 0.65mm. Its multilayer structure ensures high noise suppression characteristics without impacting the integrity of high-speed differential signals like HDMI, Serial-ATA, IEEE1394, LVDS, and USB2.0.
This component is suitable for radiated noise suppression in devices such as LCD-TVs, Blu-ray players, and PCs. It also serves as a countermeasure for receiver sensitivity degradation caused by high-frequency noise from cellular phones, data cards, and smartphones. Additionally, it can suppress common mode noise from power lines and audio signals in small devices.
The MCF08062G120-T is RoHS3 compliant and Halogen Free, packaged in tape and reel quantities of 10000 units.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The common mode impedance is 12 Ω ± 5 Ω at 100MHz.
The maximum rated current is 0.13 A.
The operating temperature range is -40°C to +85°C.
It is a Surface Mount component in an SMD/0806 case size.
Yes, it is RoHS3 Compliant.
Yes, it is Halogen Free.
