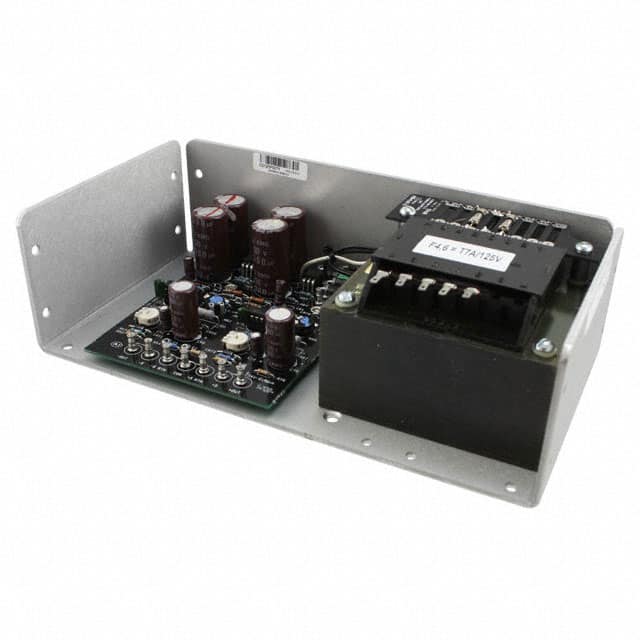

The SL Power Electronics MCC15-3-A is a linear AC/DC converter designed for medical applications, offering a total output power of 90W. It provides dual outputs of +/-15V, with a current rating of 3A for each output. The converter features adjustable output voltage and remote sensing capabilities, enhancing its flexibility in various designs.
With a universal AC input range and a wide operating temperature range of 0°C to 70°C (with derating), this unit is suitable for diverse environmental conditions. It meets industry standards including CE, cURus, and TUV approvals. The chassis mount design facilitates easy integration into systems.
Key specifications include line and load regulation of ±0.05%, and output ripple of 3 mV +0.05% peak to peak maximum. The unit also incorporates automatic current limit/foldback for short circuit protection and built-in overvoltage protection on 5V models. Transformer insulation meets Class F (155ºC) standards, and it exceeds FCC and CISPR22 Class B conducted emissions requirements.
The MCC15-3-A provides dual outputs of -15V and +15V.
The MCC15-3-A has a maximum output current of 3A per output.
The MCC15-3-A has a total power output of 90W.
The MCC15-3-A uses chassis mount.
The operating temperature range for the MCC15-3-A is 0°C to 70°C with derating.
Yes, the MCC15-3-A has automatic current limit/foldback for short circuit protection.
The MCC15-3-A is approved by CE, cURus, and TUV.
