| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,200 pcs
|
5200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Data Converters | |
| EEPROM Size | |
| Lead Spacing | |
| Mounting Type | |
| Number of I | |
| Operating Temperature | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| Speed | |
| Supplier Device Package | |
| Supplier Package | |
| Voltage |

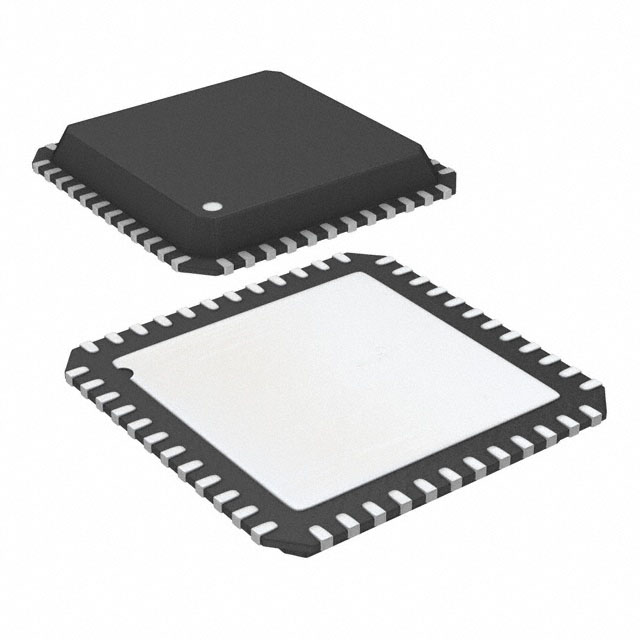

The NXP Semiconductors MC9S12P32CFT is a 16-bit microcontroller based on the HCS12 core. It offers 32KB of Flash program memory and 2KB of RAM, with an additional 4KB of EEPROM.
This device operates at speeds up to 32MHz and supports a wide voltage range from 1.72V to 5.5V. It includes peripherals such as LVD, POR, PWM, and WDT, along with connectivity options like CANbus, SCI, and SPI. The integrated analog-to-digital converter has 10 channels with 12-bit resolution.
The microcontroller is designed for operation within a temperature range of -40°C to 85°C (TA). It is supplied in a 48-QFN-EP (7x7) package, suitable for surface mounting.
Key specifications include 34 I/O lines and an internal oscillator. The MC9S12P32CFT is part of the S12P family, offering a robust solution for embedded applications requiring significant processing power and peripheral integration.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.40 | $6.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The program memory size is 32KB (32K x 8).
The operating voltage range is 1.72V to 5.5V.
The operating temperature range is -40°C to 85°C (TA).
It is supplied in a 48-TFQFN Exposed Pad package.
Connectivity options include CANbus, SCI, and SPI.
