| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,566 pcs
|
3566 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Data Converters | |
| Lead Spacing | |
| Mounting Type | |
| Number of I | |
| Operating Temperature | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| Speed | |
| Supplier Device Package | |
| Voltage |

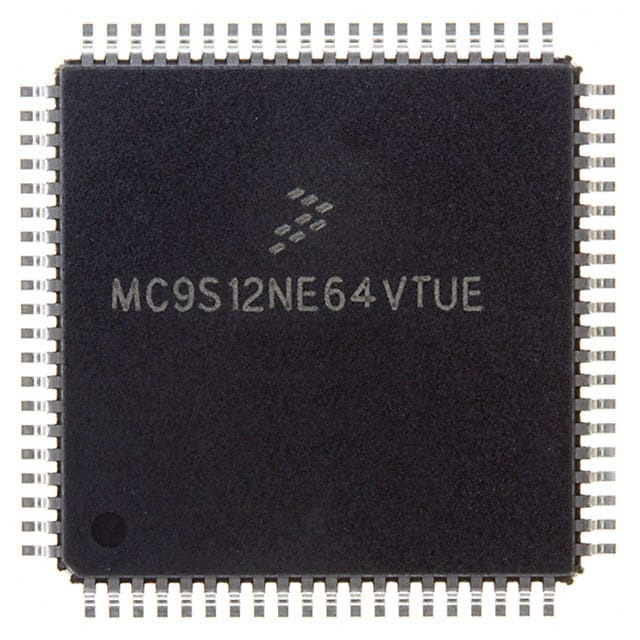

The MC9S12NE64VTUE from NXP Semiconductors is a 16-bit microcontroller based on the HCS12 core. It offers 64KB of Flash program memory and 8KB of RAM, suitable for embedded applications requiring moderate processing power.
This device operates at a speed of 25MHz and supports a wide voltage range from 2.375V to 3.465V. It includes essential peripherals such as POR, PWM, and WDT, along with an 8-channel, 10-bit Analog-to-Digital converter. Connectivity options include EBI/EMI, Ethernet, I²C, SCI, and SPI interfaces, enabling versatile system integration.
The microcontroller is designed for surface mount applications and comes in an 80-TQFP Exposed Pad package. It operates within an ambient temperature range of -40°C to 105°C, making it suitable for various environmental conditions. The internal oscillator simplifies system design by eliminating the need for external clock components.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.40 | $6.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MC9S12NE64VTUE has a program memory size of 64KB.
The MC9S12NE64VTUE uses FLASH program memory.
The MC9S12NE64VTUE has a RAM size of 8KB.
The MC9S12NE64VTUE operates at a speed of 25MHz.
The minimum operating voltage for the MC9S12NE64VTUE is 2.375V.
The maximum operating voltage for the MC9S12NE64VTUE is 3.465V.
The operating temperature range for the MC9S12NE64VTUE is -40°C to 105°C.
The MC9S12NE64VTUE is supplied in an 80-TQFP Exposed Pad package.
