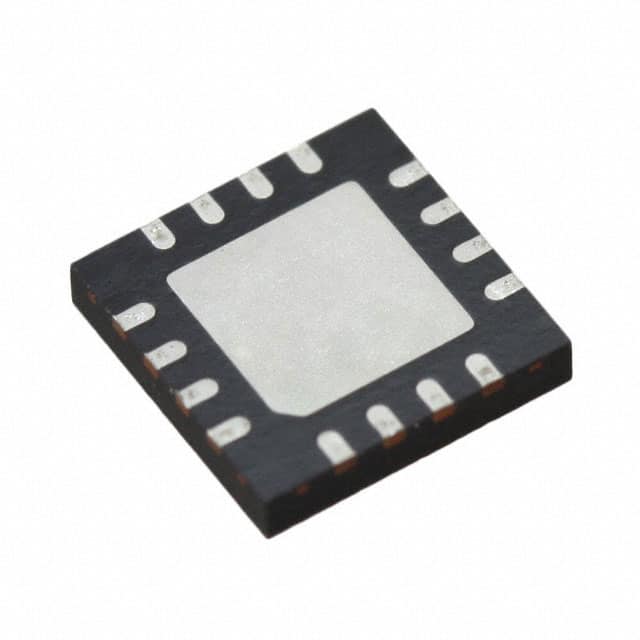

MC9S08QG8MFFE The NXP Semiconductors MC9S08QG8MFFE is an 8-bit microcontroller featuring 8KB of FLASH memory and operating at up to 20MHz. It is housed in a 16-QFN package.
Mfr Part #:

MC9S08QG8MFFE

Available from 2 distributors
Mfr Name: NXP Semiconductors
NXP Semiconductors
The NXP Semiconductors MC9S08QG8MFFE is an 8-bit microcontroller featuring 8KB of FLASH memory and operating at up to 20MHz. It is housed in a 16-QFN package.
✓ Total Stock: 22,313 pcs
$ Price Range: $6.40

MC9S08QG8MFFE Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
21,227 pcs
On Request
21227 pcs On Request 1 On Request On Request On Request On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,086 pcs
On Request
1086 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MC9S08QG8MFFE Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connectivity
Core Processor
Core Size
Data Converters
Mounting Type
Number of I
Operating Temperature
Oscillator Type
Peripherals
Program Memory Size
Program Memory Type
RAM Size
Speed
Supplier Device Package
Voltage
View Similar Products (0)

MC9S08QG8MFFE Description

Short technical summary and product information.

The MC9S08QG8MFFE is an 8-bit microcontroller from NXP Semiconductors, built on the S08 core processor. It offers a maximum operating speed of 20MHz, making it suitable for various embedded applications. The device is equipped with 8KB of FLASH program memory and 512 bytes of RAM, providing sufficient space for code and data storage.



This microcontroller operates within a voltage range of 1.8V to 3.6V and features an internal oscillator, simplifying design and reducing component count. It includes 12 I/O pins and supports common communication protocols such as I2C, SCI, and SPI. Integrated peripherals include Low Voltage Detection (LVD), Power-On Reset (POR), Pulse Width Modulation (PWM), and a Watchdog Timer (WDT).



The MC9S08QG8MFFE is designed for surface mounting, utilizing a 16-QFN-EP (Exposed Pad) package measuring 5x5mm. It operates across a temperature range of -40°C to 125°C (TA).



This MCU is well-suited for applications in consumer electronics, industrial automation, automotive systems, and medical devices where a compact, versatile, and reliable microcontroller is required.

MC9S08QG8MFFE Quick Information

Product Type: Microcontroller
Canonical Name: MC9S08QG8MFFE 8-Bit Microcontroller
Subcategory: 8-Bit

MC9S08QG8MFFE Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MC9S08QG8MFFE Estimated Pricing

Qty Low High
1+ $6.40 $6.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

MC9S08QG8MFFE Features

  • 8-bit S08 core processor
  • 20MHz maximum operating speed
  • 8KB FLASH program memory
  • 512 Bytes RAM
  • 1.8V to 3.6V operating voltage

MC9S08QG8MFFE Applications

  • Suitable for consumer electronics
  • Used in industrial automation
  • Applicable in automotive systems
  • Designed for medical devices

MC9S08QG8MFFE FAQs

4 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the MC9S08QG8MFFE?

The operating voltage range is 1.8V to 3.6V.

What package type does the MC9S08QG8MFFE come in?

It comes in a 16-QFN-EP (16-VQFN Exposed Pad) package.

What is the operating temperature range for the MC9S08QG8MFFE?

The operating temperature range is -40°C to 125°C.

Is the MC9S08QG8MFFE RoHS compliant?

Yes, it is RoHS3 compliant.
