MC9S08QG8CFFE The Freescale Semiconductor MC9S08QG8CFFE is an 8-Bit microcontroller featuring an HCS08 CPU core. It offers 8KB of Flash memory and 512 bytes of RAM.
Mfr Part #:

MC9S08QG8CFFE

Available from 1 distributors
Mfr Name: Freescale Semiconductor
Freescale Semiconductor
The Freescale Semiconductor MC9S08QG8CFFE is an 8-Bit microcontroller featuring an HCS08 CPU core. It offers 8KB of Flash memory and 512 bytes of RAM.
✓ Total Stock: 2,932 pcs
$ Price Range: $5.55

MC9S08QG8CFFE Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
2,932 pcs
On Request
2932 pcs On Request 1 On Request On Request 10+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MC9S08QG8CFFE Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Package / Case
RAM Size
Storage Temperature
Tape & Reel
View Similar Products (0)

MC9S08QG8CFFE Description

Short technical summary and product information.

The Freescale Semiconductor MC9S08QG8CFFE is an 8-bit microcontroller based on the HCS08 architecture. It operates with a 20 MHz CPU, providing efficient processing capabilities for embedded applications.



This microcontroller includes 8 Kbytes of Flash memory for program storage and 512 bytes of RAM for data manipulation. It supports various clock source options, including an internal clock source module (ICS) with an FLL and an external clock source input (XOSC). System protection features include a watchdog computer operating properly (COP) reset.

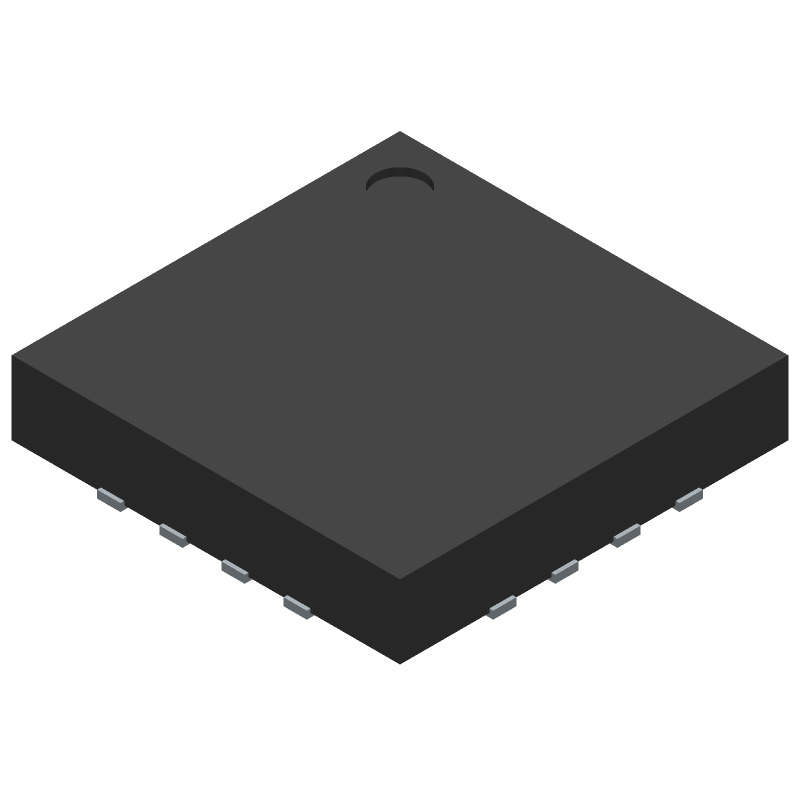

The MC9S08QG8CFFE is supplied in a QFN package, suitable for surface mounting. The standard package quantity is 24 units.

MC9S08QG8CFFE Quick Information

Product Type: Microcontroller
Series: MC9S08QG8
Canonical Name: MC9S08QG8CFFE 8-Bit Microcontroller
Subcategory: Embedded

MC9S08QG8CFFE Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MC9S08QG8CFFE Estimated Pricing

Qty Low High
1+ $5.55 $5.55

Estimated market price range - modelled values for guidance only, not live distributor offers.

MC9S08QG8CFFE Features

  • 8-Bit HCS08 Central Processor Unit.
  • 20 MHz CPU frequency.
  • 8 Kbytes FLASH memory.
  • 512 bytes RAM.
  • QFN package.

MC9S08QG8CFFE Applications

  • Suitable for embedded control systems in appliances.
  • Ideal for low-power industrial automation devices.
  • Used in compact microcontroller-based sensor modules.
  • Applicable in portable medical device electronics.
  • Suitable for small-scale consumer electronic products.

MC9S08QG8CFFE FAQs

5 frequently asked questions generated from this part’s specifications.
What is the CPU speed of the MC9S08QG8CFFE?

The CPU speed is 20 MHz.

How much Flash memory does the MC9S08QG8CFFE have?

It has 8 Kbytes of Flash memory.

What is the RAM size for the MC9S08QG8CFFE?

The RAM size is 512 bytes.

What type of package is the MC9S08QG8CFFE supplied in?

It is supplied in a QFN package.

What are the clock source options for this microcontroller?

It supports an internal clock source module (ICS) with an FLL and an external clock source input (XOSC).
