| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,880 pcs
|
5880 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Data Converters | |
| Mounting Type | |
| Number of I | |
| Operating Temperature | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| Speed | |
| Supplier Device Package | |
| Voltage |

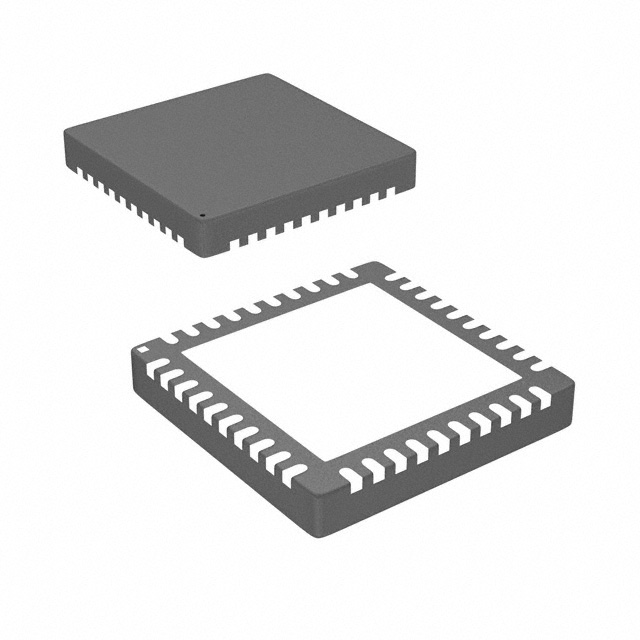

The MC9S08QE32CFM is a high-performance 8-bit microcontroller from NXP Semiconductors, built on the S08 core processor. It offers 32KB of Flash program memory and 2KB of RAM, suitable for a wide range of embedded applications.
This MCU operates at a maximum speed of 50MHz, supporting a supply voltage range of 1.8V to 3.6V. It includes an internal oscillator and various peripherals such as Low Voltage Detection (LVD), Pulse Width Modulation (PWM), and a Watchdog Timer (WDT). Connectivity options include I2C, LINbus, SCI, and SPI interfaces.
The device features a 10-channel, 12-bit Analog-to-Digital Converter (A/D) for precise data acquisition. It is available in a 32-pin QFN package with an exposed pad (5x5 mm), designed for surface mounting.
Applications for the MC9S08QE32CFM include consumer electronics, industrial automation, automotive systems, medical devices, and smart meters. NXP Semiconductors provides development tools like the CodeWarrior Development Studio to support the design process.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.40 | $6.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 1.8V to 3.6V.
The MC9S08QE32CFM is available in a 32-QFN-EP (5x5mm) package.
The operating temperature range is -40°C to 85°C (TA).
The program memory size is 32KB.
The RAM size is 2KB.
The maximum operating speed is 50.33 MHz.
