| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
24,860 pcs
|
24860 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Data Converters | |
| Lead Spacing | |
| Mounting Type | |
| Number of I | |
| Operating Temperature | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| Speed | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Voltage |
This NXP Semiconductors MC9S08LL8CLH is an 8-bit microcontroller based on the S08 core. It offers 10KB of FLASH program memory and 2KB of RAM, with a maximum operating speed of 20MHz. The device supports a wide operating voltage range from 1.8V to 3.6V and operates within a temperature range of -40°C to 85°C.
Key peripherals include I²C, SCI, and SPI interfaces, along with an 8-channel 12-bit Analog-to-Digital converter. It features internal clock source and system protection features like Watchdog Timer (WDT), Low Voltage Detect (LVD), and Power-On Reset (POR).

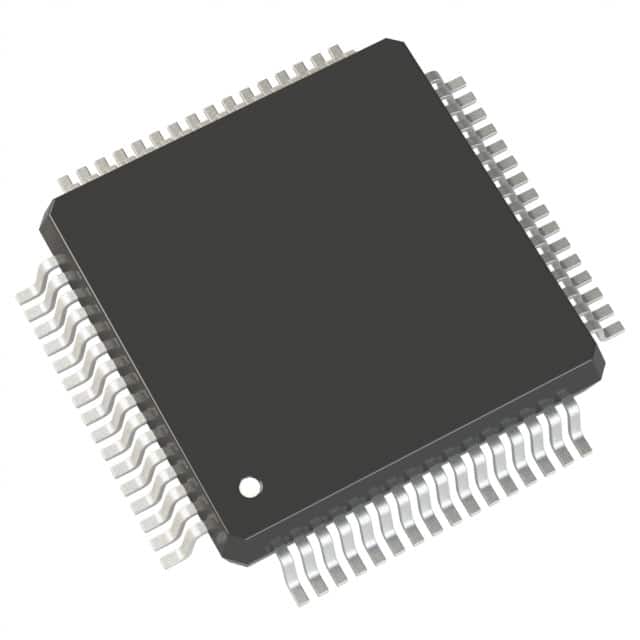

The microcontroller is supplied in a 64-LQFP package with surface mount mounting type. Its compact size and robust feature set make it suitable for various embedded applications requiring efficient processing and peripheral control.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.40 | $6.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 1.8V to 3.6V.
It is supplied in a 64-LQFP package.
The operating temperature range is -40°C to 85°C (TA).
Yes, it is RoHS3 Compliant.
