Mfr Part #:

MC9S08AW60CFUE

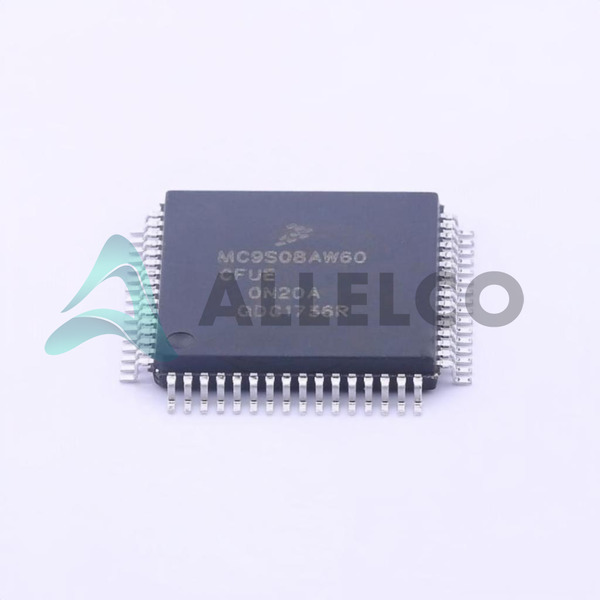

The Freescale Semiconductor MC9S08AW60CFUE is an 8-bit HCS08 microcontroller. It features a 40MHz CPU core and offers up to 60KB of Flash memory and 2KB of RAM.

✓ Total Stock: 9,468 pcs

$ Price Range: $5.55

MC9S08AW60CFUE Available from 3 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Optech Co.,Limited ✓ Non-Authorised Inventory information	6,224 pcs On Request	6224 pcs	On Request	1	On Request	On Request	2032+	On Request	On Request
Xingangxin ✓ Non-Authorised Inventory information	3,217 pcs On Request	3217 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Rayichip ✓ Non-Authorised Inventory information	27 pcs On Request	27 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

MC9S08AW60CFUE Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Freescale Semiconductor

View Similar Products (0)

MC9S08AW60CFUE Description

Short technical summary and product information.

The MC9S08AW60CFUE from Freescale Semiconductor is an 8-bit microcontroller based on the HCS08 core. It operates at a 40MHz CPU speed with a 20MHz internal bus frequency, supporting the HC08 instruction set. This device includes a single-wire background debug mode interface and on-chip real-time in-circuit emulation (ICE).

Memory options include up to 60KB of on-chip Flash memory with block protection and security features, and up to 2KB of on-chip RAM. The microcontroller supports up to 32 interrupt/reset sources and offers flexible clock source options. System protection features include optional COP reset, low-voltage detection, illegal opcode detection, and illegal address detection.

Peripherals include an Analog-to-Digital Converter (ADC) with up to 16 channels and 10-bit resolution. Power-saving modes such as Wait and Stop are also available. The device is available in a QFN package.

MC9S08AW60CFUE Quick Information

Product Type: Microcontroller

Series: MC9S08AW

Canonical Name: MC9S08AW60CFUE 8-Bit HCS08 Microcontroller

Subcategory: HCS08

MC9S08AW60CFUE Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

MC9S08AW60CFUE Estimated Pricing

Qty	Low	High
1+	$5.55	$5.55

Estimated market price range - modelled values for guidance only, not live distributor offers.

MC9S08AW60CFUE Features

8-Bit HCS08 Central Processor Unit (CPU)
40-MHz CPU speed, 20-MHz internal bus
Up to 60 KB on-chip FLASH memory
Up to 2 KB on-chip RAM
Up to 16-channel, 10-bit ADC

MC9S08AW60CFUE Applications

Suitable for embedded control systems
Ideal for applications requiring moderate memory
Supports real-time in-circuit emulation
Features robust system protection mechanisms

MC9S08AW60CFUE FAQs

5 frequently asked questions generated from this part’s specifications.

What is the CPU core and speed of the MC9S08AW60CFUE?

The MC9S08AW60CFUE features an 8-Bit HCS08 Central Processor Unit (CPU) running at 40 MHz with a 20 MHz internal bus frequency.

How much Flash memory and RAM does the MC9S08AW60CFUE have?

The MC9S08AW60CFUE offers up to 60 KB of on-chip FLASH memory and up to 2 KB of on-chip RAM.

What are the Analog-to-Digital Converter (ADC) specifications?

The device includes an ADC with up to 16 channels and a 10-bit resolution.

What system protection features are included?

System protection includes optional COP reset, low-voltage detection with reset or interrupt, illegal opcode detection with reset, and illegal address detection with reset.

What package type is the MC9S08AW60CFUE available in?

The MC9S08AW60CFUE is available in a QFN package.
