| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
450 pcs
|
450 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connectivity | |
| Mounting Type | |
| Peripherals | |
| RAM Size | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage |
The MC9S08AC16CFJE is a high-performance 8-bit microcontroller from NXP Semiconductors, built on the robust S08 core processor. It operates at speeds up to 40MHz, ensuring efficient processing for embedded applications. This MCU is equipped with 16KB of on-chip FLASH program memory and 1KB of RAM, providing ample storage for code and data.
The device supports a wide operating voltage range of 2.7V to 5.5V, making it suitable for various power supply environments. It features 22 I/O pins for extensive connectivity and includes essential peripherals such as Low Voltage Detect (LVD), Power-On Reset (POR), Pulse Width Modulation (PWM), and a Watchdog Timer (WDT).
Housed in a 32-pin LQFP package for surface mounting, the MC9S08AC16CFJE is designed for applications in consumer electronics, industrial control, automotive systems, medical devices, and smart home systems. It also includes 6-channel 10-bit A/D converters for analog signal processing and an internal oscillator.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.55 | $5.55 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MC9S08AC16CFJE features an 8-bit HCS08 core processor.
The MC9S08AC16CFJE can operate at speeds up to 40MHz.
The MC9S08AC16CFJE is equipped with 16KB of FLASH program memory.
The MC9S08AC16CFJE has 1KB of RAM.
The MC9S08AC16CFJE operates within a voltage range of 2.7V to 5.5V.
The MC9S08AC16CFJE features 22 I/O pins.

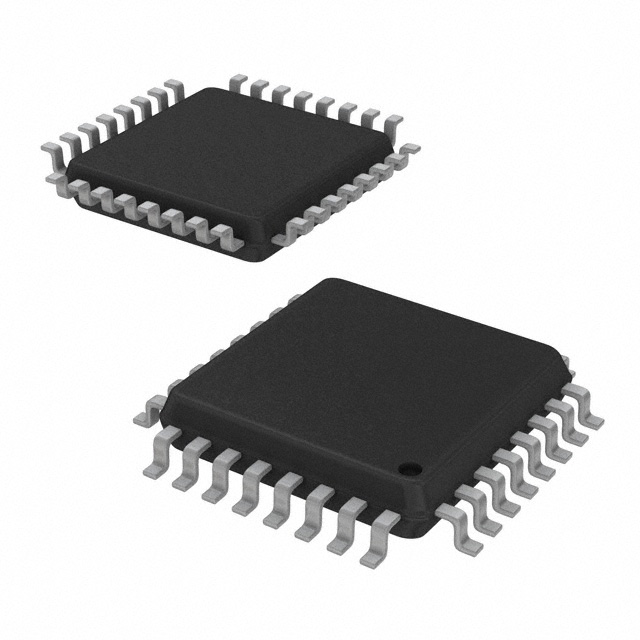

The MC9S08AC16CFJE is supplied in a 32-pin LQFP package.
