The Renesas MC88915FN70 is a PLL Clock Driver designed for clock generation and distribution applications. It operates with a supply voltage range of 4.75V to 5.25V and provides a frequency output of up to 70MHz.
This device features a 2:8 input to output ratio and supports both TTL input and CMOS/TTL output signals. It is equipped with a PLL that includes a bypass function, enhancing its flexibility. The operating temperature range is from 0°C to 70°C, making it suitable for various environmental conditions.

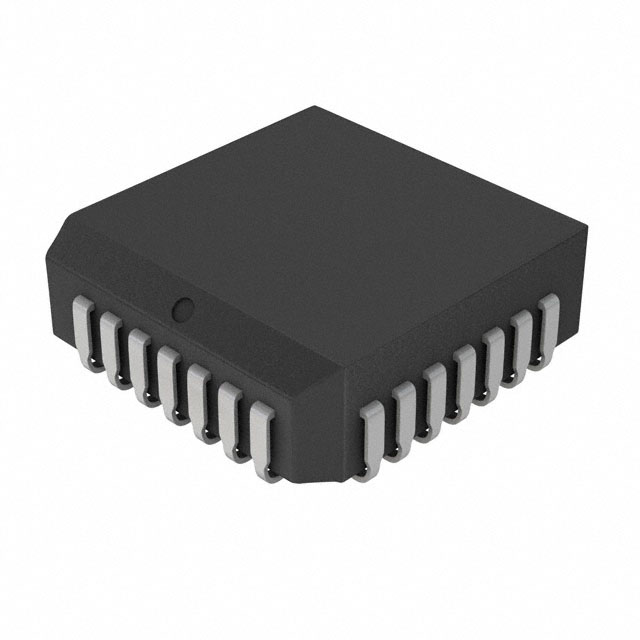

The MC88915FN70 is available in a 28-PLCC surface mount package, specifically a 28-LCC (J-Lead) configuration. Its single-circuit design and robust specifications make it a reliable choice for timing-critical applications.
This component is RoHS3 Compliant and has a Moisture Sensitivity Level (MSL) of 3. It is also REACH Unaffected, indicating compliance with relevant environmental regulations.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.01 | $7.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage for the MC88915FN70 is between 4.75V and 5.25V.
The MC88915FN70 is supplied in a 28-PLCC (11.51x11.51) package, specifically a 28-LCC (J-Lead) configuration.
The operating temperature range for the MC88915FN70 is 0°C to 70°C.
The MC88915FN70 is RoHS3 Compliant.
The maximum frequency for the MC88915FN70 is 70MHz.
The input to output ratio of the MC88915FN70 is 2:8.
