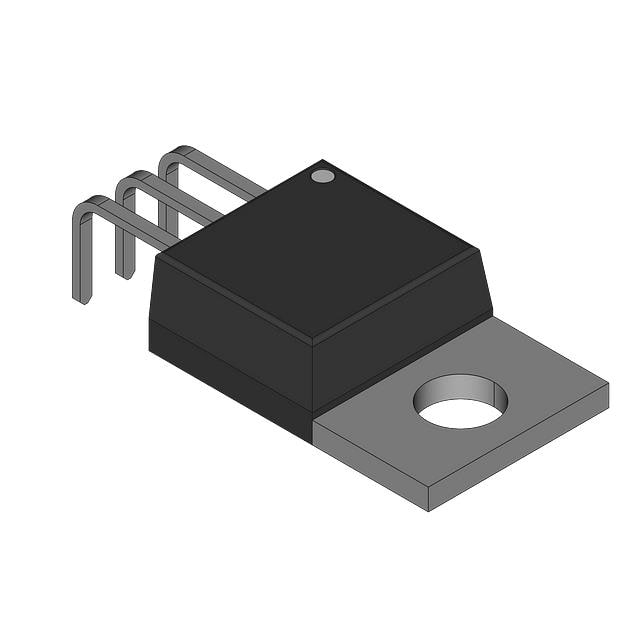

The ON Semiconductor MC7805CTG is a fixed positive linear voltage regulator with a 5V output voltage. It can accept an input voltage up to 35V and provides a regulated output current of 6.5mA. The device features over-temperature and short-circuit protection, making it suitable for various power management applications.
Designed for through-hole mounting, the MC7805CTG comes in a TO-220 package. Its operating temperature range is from 0°C to 125°C. The regulator offers a typical PSRR of 83dB at 120Hz and a voltage dropout of 2V at 1A (typical).
This component is a reliable choice for applications requiring a stable positive voltage supply. Its robust protection features contribute to system reliability in demanding environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.28 | $0.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MC7805CTG provides a fixed output voltage of 5V.
The maximum input voltage is 35V.
The output current is 6.5mA.
The operating temperature range is 0°C to 125°C.
The MC7805CTG is available in a TO-220-3 through-hole package.
It includes over-temperature and short circuit protection.
