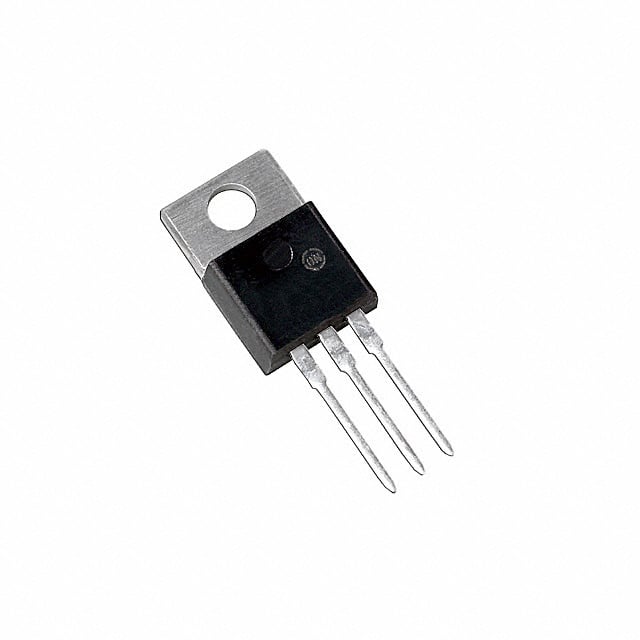

MC7805ACTG The ON Semiconductor MC7805ACTG is a fixed 5V positive linear voltage regulator. It offers an output current of up to 1A and is housed in a TO-220 package.
Mfr Part #:

MC7805ACTG

Available from 6 distributors
Mfr Name: On Semiconductor
On Semiconductor
The ON Semiconductor MC7805ACTG is a fixed 5V positive linear voltage regulator. It offers an output current of up to 1A and is housed in a TO-220 package.
✓ Total Stock: 23,508 pcs
$ Price Range: $0.28

MC7805ACTG Available from 6 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MC7805ACTG Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
ESD Protection
Junction Temperature
Lead Spacing
Lead Style
Mounting Type
Number of Regulators
Operating Temperature
Output Configuration
Output Current
Output Type
Output Voltage
PSRR
Protection Features
Storage Temperature
Supplier Device Package
Supplier Package
Thermal Resistance
Voltage
Voltage Dropout (Max)
View Similar Products (0)

MC7805ACTG Description

Short technical summary and product information.

The ON Semiconductor MC7805ACTG is a monolithic integrated circuit designed as a fixed 5V positive linear voltage regulator. It is capable of delivering output currents in excess of 1A, making it suitable for a wide variety of applications including local, on-card regulation.



Key features include internal current limiting, thermal shutdown, and safe-area compensation, providing robust protection against overloads. The device requires no external components for basic operation. It operates with an input voltage range up to 35Vdc and features a typical voltage dropout of 2V at 1A.



This regulator is supplied in a standard TO-220-3 package, designed for through-hole mounting. The operating temperature range is from 0°C to 125°C. The MC7805ACTG is also noted as being Pb-Free.

MC7805ACTG Quick Information

Product Type: Linear Voltage Regulator
Series: MC7805A
Canonical Name: MC7805ACTG 5V 1A Positive Linear Voltage Regulator
Subcategory: Linear

MC7805ACTG Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Pb-Free

MC7805ACTG Estimated Pricing

Qty Low High
1+ $0.28 $0.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

MC7805ACTG Features

  • Fixed 5V positive linear voltage regulator.
  • Output current capability in excess of 1A.
  • Internal thermal overload protection.
  • Internal short circuit current limiting.
  • TO-220 package for through-hole mounting.

MC7805ACTG Applications

  • Local on-card voltage regulation for 5V logic circuits.
  • Power supply for microcontrollers and digital ICs.
  • Regulated 5V output for analog sensor interfaces.
  • General purpose fixed voltage regulation up to 1A.

MC7805ACTG FAQs

5 frequently asked questions generated from this part’s specifications.
What is the output voltage of the MC7805ACTG?

The MC7805ACTG provides a fixed 5V output voltage.

What is the maximum output current for the MC7805ACTG?

The MC7805ACTG can deliver output currents in excess of 1A.

What type of package is the MC7805ACTG in?

The MC7805ACTG is supplied in a TO-220-3 package.

What is the operating temperature range for the MC7805ACTG?

The operating temperature range for the MC7805ACTG is 0°C to 125°C.

Does the MC7805ACTG have protection features?

Yes, the MC7805ACTG includes over-temperature and short-circuit protection.
