| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
477,500 pcs
|
477500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
843 pcs
|
843 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
180 pcs
|
180 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Bandwidth | |
| Channel | |
| Channel Capacitance (CS(off), CD(off)) | |
| Crosstalk | |
| Current | |
| Halogen Free | |
| Mounting Style | |
| Mounting Type | |
| Multiplexer | |
| Number of Circuits | |
| On | |
| Operating Temperature | |
| Supplier Device Package | |
| Voltage |

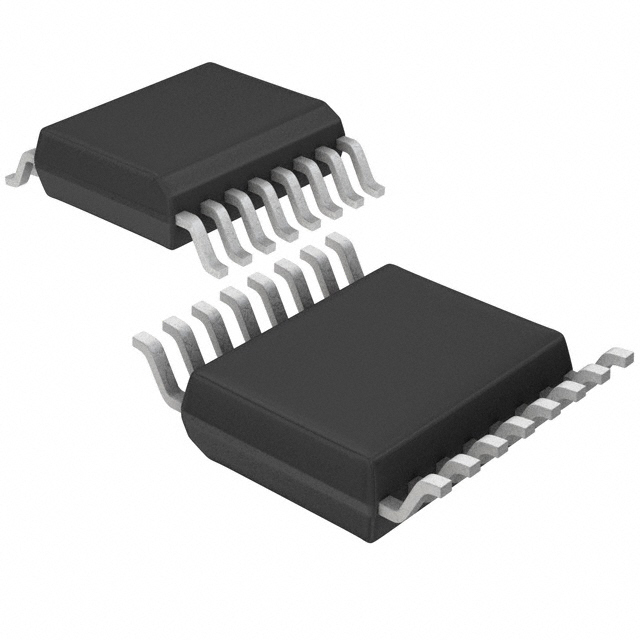

The MC74VHC4051DTR2G from ON Semiconductor is a high-performance silicon-gate CMOS analog multiplexer/demultiplexer. It offers fast switching speeds and low ON resistances, making it suitable for controlling analog voltages across the complete power supply range.
Key electrical characteristics include an operating supply voltage of 2V to 6V for digital control and 2V to 12V for analog signals. The device features an ON resistance of 100 Ohms and a bandwidth of 80MHz. It also provides low crosstalk between switches (-60dB @ 1MHz) and low leakage current (100nA).
Designed for surface mount applications, the MC74VHC4051DTR2G comes in a 16-TSSOP package. It operates within a temperature range of -55°C to 125°C. The device is Pb-free and halogen-free, complying with RoHS standards.
This multiplexer/demultiplexer is ideal for applications requiring efficient switching of analog signals, offering improved linearity and lower ON resistance compared to older metal-gate counterparts.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.30 | $0.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The digital control power supply range is 2.0 V to 6.0 V, and the analog power supply range is 2.0 V to 12.0 V.
The operating temperature range is -55°C to 125°C.
The maximum on-resistance is 200 Ohms, with a typical value of 100 Ohms.
It is supplied in a 16-TSSOP package suitable for surface mounting.
