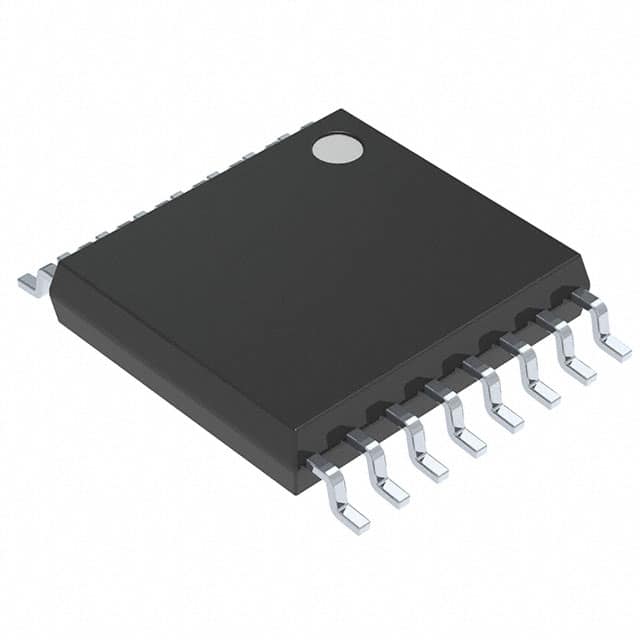

MC74LV594ADTR2G The ON Semiconductor MC74LV594ADTR2G is an 8-bit shift register with storage. It operates from 2V to 6V and is housed in a 16-TSSOP package.
Mfr Part #:

MC74LV594ADTR2G

Available from 2 distributors
Mfr Name: On Semiconductor
On Semiconductor
The ON Semiconductor MC74LV594ADTR2G is an 8-bit shift register with storage. It operates from 2V to 6V and is housed in a 16-TSSOP package.
✓ Total Stock: 37,400 pcs
$ Price Range: $0.64

MC74LV594ADTR2G Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
35,000 pcs
On Request
35000 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
2,400 pcs
On Request
2400 pcs On Request 1 On Request On Request 14+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MC74LV594ADTR2G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Function
Halogen Free
Logic Type
Mounting Type
Number of Bits per Element
Number of Elements
Operating Temperature
Output Type
SVHC Present
Supplier Device Package
Supplier Package
Voltage
View Similar Products (0)

MC74LV594ADTR2G Description

Short technical summary and product information.

The MC74LV594ADTR2G from ON Semiconductor is an 8-bit shift register designed for 2 V to 6.0 V VCC operation. This device features an 8-bit serial-in, parallel-out shift register that feeds an 8-bit D-type storage register. It offers independent clocks and direct overriding clears for both the shift and storage registers, with a serial output provided for cascading purposes.



The shift and storage register clocks are positive-edge triggered. If the clocks are tied together, the shift register will always be one clock pulse ahead of the storage register. The device supports mixed-mode voltage operation on all ports and exhibits high noise immunity characteristic of CMOS devices.



Packaged in a 16-TSSOP, the MC74LV594ADTR2G is suitable for surface mount applications. Its operating temperature range is -55°C to 125°C, and it is RoHS3 compliant, MSL 1, and REACH unaffected.



Key electrical characteristics include a maximum propagation delay (tpd) of 6.5 ns at 5 V, typical output ground bounce (VOLP) of less than 0.8 V at 3.3 V, and typical output VOH undershoot (VOHV) of greater than 2.3 V at 3.3 V.

MC74LV594ADTR2G Quick Information

Product Type: Shift Register
Series: 74LV
Canonical Name: MC74LV594A 8-Bit Serial-In, Parallel-Out Shift Register with Storage
Subcategory: Shift Register

MC74LV594ADTR2G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MC74LV594ADTR2G Estimated Pricing

Qty Low High
1+ $0.64 $0.64

Estimated market price range - modelled values for guidance only, not live distributor offers.

MC74LV594ADTR2G Features

  • 8-bit serial-in, parallel-out shift register.
  • Operates from 2.0 V to 6.0 V VCC.
  • Independent clocks and clears provided.
  • Surface mount 16-TSSOP package.
  • RoHS3 compliant and halogen free.

MC74LV594ADTR2G Applications

  • Ideal for data serializing applications.
  • Used in systems requiring parallel data output.
  • Suitable for cascading shift registers.
  • Designed for mixed-voltage systems.

MC74LV594ADTR2G FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the MC74LV594ADTR2G?

2.0V to 6.0V.

What is the propagation delay of this shift register?

6.5 ns at 5V supply.

What is the operating temperature range?

-55°C to 125°C.

What logic type is the MC74LV594ADTR2G?

Shift register.

What is the function of this device?

Serial to parallel conversion.

What output type does it have?

Push-pull outputs.

What package is the MC74LV594ADTR2G available in?

16-TSSOP (0.173", 4.40mm width).
