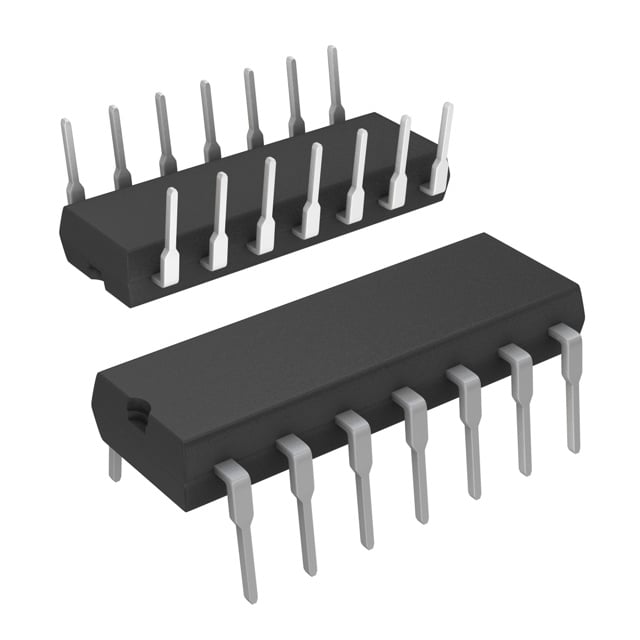

The MC74HC03AN from ON Semiconductor is a high-performance silicon-gate CMOS device featuring four independent 2-input NAND gates, each with an open-drain output. This configuration allows for wired-AND applications when used with a suitable pullup resistor.
The device operates over a wide voltage range of 2.0V to 6.0V, making it suitable for various applications. Its inputs are compatible with standard CMOS outputs and, with pullup resistors, with LSTTL outputs. The outputs can directly interface with CMOS, NMOS, and TTL logic levels.
Key electrical characteristics include a maximum propagation delay of 20ns at 6V and 50pF, low input current, and an output drive capability of 10 LSTTL loads with a suitable pullup resistor. The MC74HC03AN is available in a 14-DIP package and is designed for through-hole mounting.
This NAND gate is suitable for applications requiring sinking current, such as LED drivers. It offers high noise immunity characteristic of CMOS devices and is compliant with JEDEC Standard No. 7A requirements. The device is also Pb-free and halogen-free.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.22 | $0.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range for the MC74HC03AN is 2.0 V to 6.0 V.
The MC74HC03AN is a Quad 2-Input NAND Gate with Open-Drain Outputs.
The MC74HC03AN is available in a 14-DIP package.
The maximum propagation delay is 20 ns at 6V and 50pF.
The input logic level low is 0.5 V to 1.8 V, and the input logic level high is 1.5 V to 4.2 V.
The operating temperature range is -55 °C to 125 °C.
