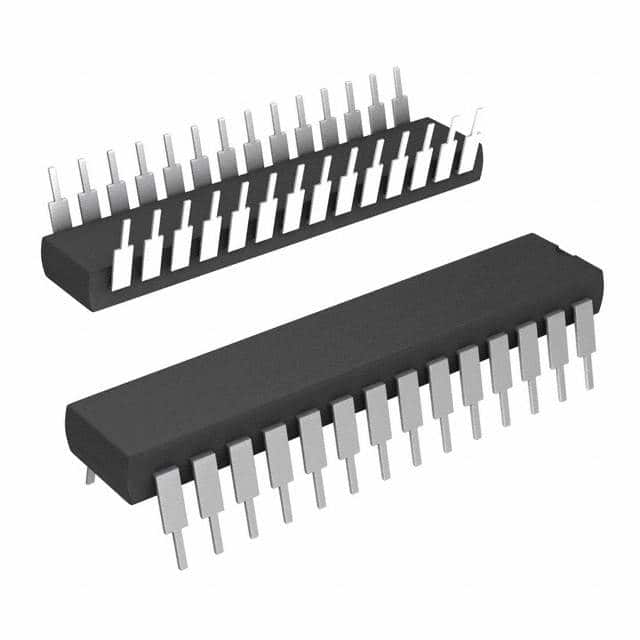

MC705P6ECPE The NXP Semiconductors MC705P6ECPE is an 8-bit microcontroller featuring 4.5KB of OTP program memory and 176B of RAM. It operates at speeds up to 2.1MHz.
Mfr Part #:

MC705P6ECPE

Available from 1 distributors
Mfr Name: NXP Semiconductors
NXP Semiconductors
The NXP Semiconductors MC705P6ECPE is an 8-bit microcontroller featuring 4.5KB of OTP program memory and 176B of RAM. It operates at speeds up to 2.1MHz.
✓ Total Stock: 26,382 pcs
$ Price Range: $6.40

MC705P6ECPE Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
26,382 pcs
On Request
26382 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MC705P6ECPE Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connectivity
Core Processor
Core Size
Data Converters
Height
Interface
Lead Spacing
Length
Mounting Style
Mounting Type
Number of I
Operating Temperature
Oscillator Type
Peripherals
Program Memory Size
Program Memory Type
RAM Size
Speed
Supplier Device Package
Voltage
Width
View Similar Products (0)

MC705P6ECPE Description

Short technical summary and product information.

The MC705P6ECPE from NXP Semiconductors is an 8-bit microcontroller belonging to the HC05 core family. It offers 4.5KB of One-Time Programmable (OTP) memory for program storage and 176 bytes of RAM for data manipulation. This device operates at a maximum clock frequency of 2.1MHz, making it suitable for various embedded control applications.



Key features include an 8-bit architecture, an internal oscillator, and a Serial Input/Output Port (SIOP) for communication. It is equipped with peripherals such as Power-On Reset (POR) and Watchdog Timer (WDT). The microcontroller includes an on-chip Analog-to-Digital Converter (ADC) with 4 channels, each 8 bits wide.



The MC705P6ECPE is supplied in a 28-pin Dual In-line Package (PDIP) with a 0.600" body width, designed for through-hole mounting. It operates within a supply voltage range of 3V to 5.5V and an ambient temperature range of -40°C to +85°C. This component is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.

MC705P6ECPE Quick Information

Product Type: Microcontroller
Canonical Name: MC705P6ECPE 8-Bit OTP Microcontroller
Subcategory: 8-Bit OTP MCU

MC705P6ECPE Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MC705P6ECPE Estimated Pricing

Qty Low High
1+ $6.40 $6.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

MC705P6ECPE Features

  • 8-bit HC05 core microcontroller.
  • 4.5KB OTP program memory.
  • 176 bytes of RAM.
  • 2.1MHz maximum clock speed.
  • 28-DIP through-hole package.

MC705P6ECPE Applications

  • General purpose embedded control.
  • Simple automation tasks.
  • Industrial monitoring systems.
  • Consumer electronics.

MC705P6ECPE FAQs

7 frequently asked questions generated from this part’s specifications.
What is the program memory size of the MC705P6ECPE?

The MC705P6ECPE has 4.5KB of OTP program memory.

What is the RAM size for the MC705P6ECPE microcontroller?

The MC705P6ECPE has 176 bytes of RAM.

What is the maximum clock frequency for the MC705P6ECPE?

The maximum clock frequency for the MC705P6ECPE is 4.2 MHz.

What is the operating voltage range for this microcontroller?

The operating supply voltage range is -0.3 V to +7 V.

What is the operating temperature range?

The operating temperature range is -40°C to +85°C.

What package type is the MC705P6ECPE supplied in?

The MC705P6ECPE is supplied in a 28-PDIP package.

How many I/O lines does the MC705P6ECPE have?

The MC705P6ECPE has 21 I/O lines.
