| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
13,460 pcs
|
13460 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Data Converters | |
| Mounting Type | |
| Number of I | |
| Operating Temperature | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| Speed | |
| Supplier Device Package | |
| Supplier Package | |
| Voltage |
The MC56F82723VFM from NXP Semiconductors is a high-performance 32-bit microcontroller based on the 56800EX core, capable of operating at speeds up to 100MHz. This device integrates 32KB of FLASH program memory and 3KB of RAM, providing ample resources for embedded applications.
Key features include a wide operating voltage range of 2.7V to 3.6V, an internal oscillator for reliable timing, and a comprehensive set of peripherals such as DMA, POR, PWM, and WDT. Connectivity options include I2C, SCI, and SPI interfaces, facilitating seamless communication with other components. The MCU also incorporates 6x12-bit A/D converters and 2x12-bit D/A converters for precise analog signal processing.

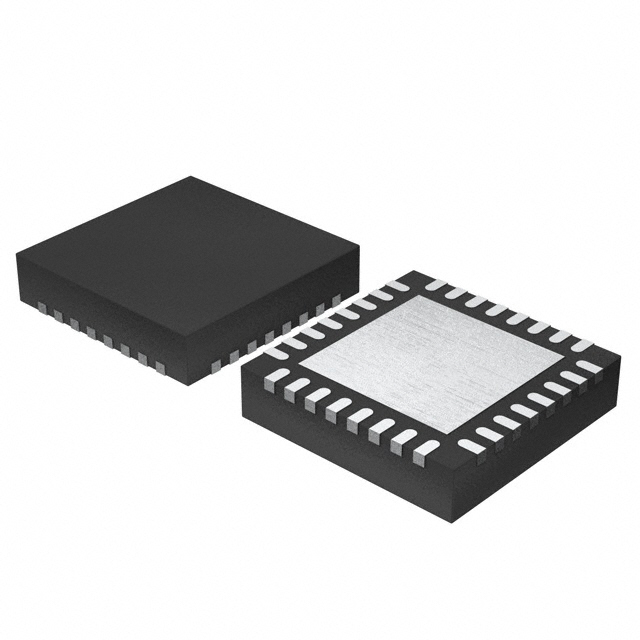

Designed for surface mount applications, the MC56F82723VFM is housed in a compact 32-HVQFN (5x5) package with a wettable flank, enhancing manufacturing reliability and inspection. Its operating temperature range is -40°C to 105°C (TA).
This microcontroller is well-suited for a variety of applications including industrial control, consumer electronics, automotive systems, and medical devices, where its processing power, peripheral set, and compact form factor are advantageous.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.40 | $6.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The core processor is the 56800EX.
The operating speed is up to 100MHz.
It has 32KB of FLASH program memory.
The RAM size is 3K x 16.
It features 6x12-bit A/D converters and 2x12-bit D/A converters.
The operating voltage range is 2.7V to 3.6V.
The operating temperature range is -40°C to 105°C (TA).
