| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Medical Grade | |
| Number of Outputs | |
| Operating Temperature | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

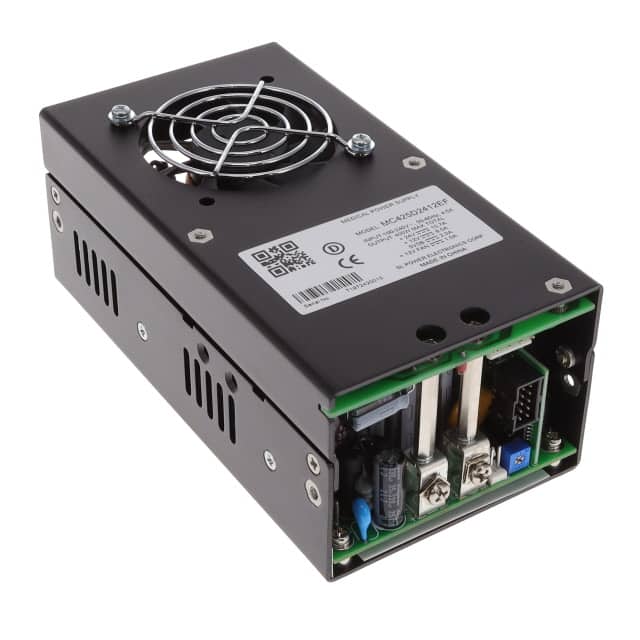

The SL Power Electronics MC425D2412EF is an enclosed AC/DC converter designed for medical applications. It provides a 12V output voltage and features 88% efficiency. Key features include adjustable output, PFC, remote sense, standby output, and universal input.
The converter has four outputs and operates within a temperature range of -10°C to 70°C with derating. Its dimensions are 157.4mm in length, 86.0mm in width, and 68.0mm in height. It meets standard 60601-1 and holds approvals from CE, CSA, cURus, DEMKO, EN, IEC, and UL.
This AC/DC converter is suitable for various medical equipment requiring reliable power conversion. Its robust design and multiple features make it a versatile choice for demanding applications.
The output voltage is 12V.
It has 4 outputs.
The efficiency is 88%.
The operating temperature range is -10°C to 70°C with derating.
The dimensions are 157.4mm length, 86.0mm width, and 68.0mm height.
It includes adjustable output, PFC, remote sense, standby output, and universal input.
It is approved by CE, CSA, cURus, DEMKO, EN, IEC, and UL.
