MC34GD3000EP The NXP Semiconductors MC34GD3000EP is a motor driver designed for 3-phase motor control applications. It operates within a 6V to 58V supply voltage range.
Mfr Part #:

MC34GD3000EP

Available from 1 distributors
Mfr Name: NXP Semiconductors
NXP Semiconductors
The NXP Semiconductors MC34GD3000EP is a motor driver designed for 3-phase motor control applications. It operates within a 6V to 58V supply voltage range.
✓ Total Stock: 260 pcs
$ Price Range: $2.25

MC34GD3000EP Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
260 pcs
On Request
260 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MC34GD3000EP Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Function
Interface
Motor Type
Mounting Type
Operating Temperature
Output Configuration
Supplier Device Package
Technology
Voltage
View Similar Products (0)

MC34GD3000EP Description

Short technical summary and product information.

The MC34GD3000EP from NXP Semiconductors is a field-effect transistor (FET) predriver specifically engineered for three-phase motor control. It is suitable for automotive applications and meets stringent requirements.



This integrated circuit features a wide supply voltage operating range from 6.0 V to 58 V. It provides gate drive capability between 1.0 A and 2.5 A and includes protection features against reverse charge injection. The device supports a wide dead time range, programmable via an SPI port, and offers integrated overcurrent, desaturation, and phase fault detection.



Designed for ease of integration, the MC34GD3000EP interfaces with MCUs via direct input control signals and an SPI port for setup and diagnostics. It accepts both 5.0 V and 3.3 V logic level inputs and provides 5.0 V logic level outputs. The IC utilizes SMARTMOS technology.

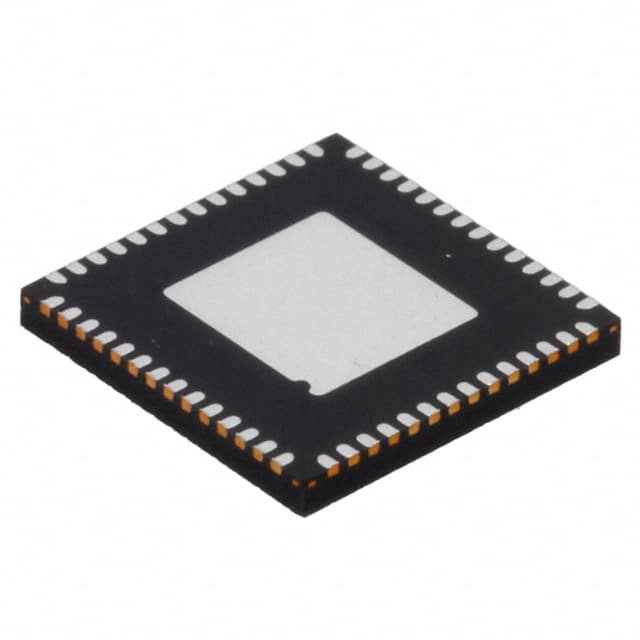

The MC34GD3000EP is housed in a 56-VFQFN exposed pad package, designed for surface mounting. Its applications include 12 V to 48 V 3-phase brushless DC (BLDC) motors, permanent-magnet synchronous motors (PMSM), pool pumps, hospital beds, electric scooters, industrial robotics, and portable power tools.

MC34GD3000EP Quick Information

Product Type: Motor Driver
Canonical Name: MC34GD3000EP Three Phase Field Effect Transistor Predriver
Subcategory: Motor Drivers, Controllers

MC34GD3000EP Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MC34GD3000EP Estimated Pricing

Qty Low High
1+ $2.25 $2.25

Estimated market price range - modelled values for guidance only, not live distributor offers.

MC34GD3000EP Features

  • Operates from 6V to 58V supply voltage.
  • Provides 1.0A to 2.5A gate drive capability.
  • Features SPI interface for setup and diagnostics.
  • Includes integrated fault detection.
  • Surface mountable 56-VFQFN package.

MC34GD3000EP Applications

  • Drives 12V to 48V BLDC motors.
  • Suitable for PMSM motor control.
  • Used in industrial robotics.
  • Applicable to electric scooters.
  • Ideal for portable power tools.

MC34GD3000EP FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the MC34GD3000EP?

The MC34GD3000EP operates within a supply voltage range of 6V to 58V.

What is the operating temperature range?

The operating temperature range for this device is -20°C to 105°C (TA).

What package type is the MC34GD3000EP supplied in?

The MC34GD3000EP is supplied in a 56-VFQFN exposed pad package.

What motor types can be controlled with the MC34GD3000EP?

This device is designed for multiphase motors, including 3-phase brushless DC (BLDC) and permanent-magnet synchronous motors (PMSM).

What interface does the MC34GD3000EP use for control and setup?

The MC34GD3000EP uses an SPI interface for device setup and diagnostics, along with direct input control signals.
