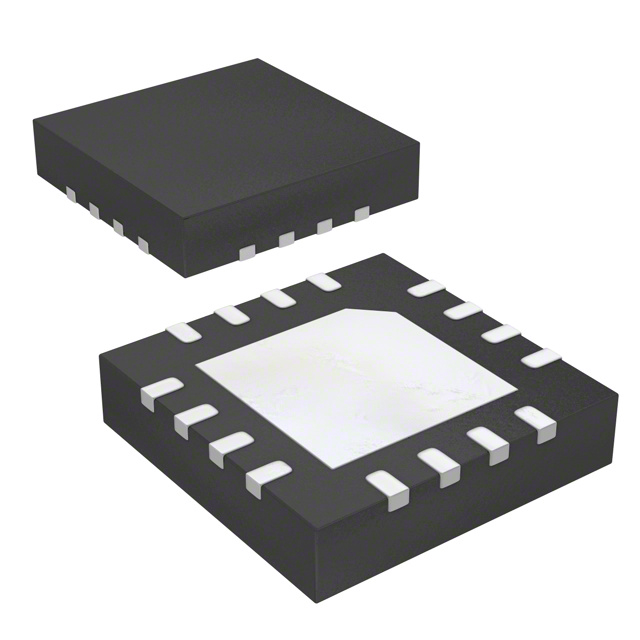

MC34933EPR2 The MC34933EPR2 is a dual channel H-bridge driver IC from NXP Semiconductors. It operates from 2.0V to 7.0V and can deliver up to 1.0A of output current.
Mfr Part #:

MC34933EPR2

Available from 1 distributors
Mfr Name: NXP Semiconductors
NXP Semiconductors
The MC34933EPR2 is a dual channel H-bridge driver IC from NXP Semiconductors. It operates from 2.0V to 7.0V and can deliver up to 1.0A of output current.
✓ Total Stock: 5,000 pcs
$ Price Range: $2.25

MC34933EPR2 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
5,000 pcs
On Request
5000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MC34933EPR2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Current
Function
Interface
Motor Type
Mounting Type
Operating Temperature
Output Configuration
Supplier Device Package
Supplier Package
Technology
Voltage
View Similar Products (0)

MC34933EPR2 Description

Short technical summary and product information.

The MC34933EPR2 is a two-channel H-bridge driver designed for applications such as digital camera autofocus control and driving bipolar step motors or brush DC motors. Manufactured by NXP Semiconductors, this integrated circuit utilizes a proprietary SMARTMOS process for low-power operation.



Key electrical specifications include an operating voltage range of 2.0 V to 7.0 V, a maximum load output current of 1.0 A at 25 °C, and a low total RDS(on) of 1.0 Ω maximum (0.8 Ω typical) at 25 °C. For dual-channel parallel drive, the RDS(on) is 0.4 Ω typical with a maximum DC current of 1.4 A. The device supports PWM control input frequencies up to 200 kHz.



Integrated features include shoot-through current prevention, a charge pump circuit, VCC low voltage detection, and thermal detection. The MC34933EPR2 operates within a junction temperature range of -20 °C to 150 °C.



This component is supplied in a 16-UQFN Exposed Pad package, measuring 3x3 mm, and is designed for surface mounting. It is compatible with 3.0 V logic.

MC34933EPR2 Quick Information

Product Type: Dual H-Bridge Driver
Canonical Name: MC34933EPR2 Dual H-Bridge Driver
Subcategory: H-Bridge Driver

MC34933EPR2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead-free product

MC34933EPR2 Estimated Pricing

Qty Low High
1+ $2.25 $2.25

Estimated market price range - modelled values for guidance only, not live distributor offers.

MC34933EPR2 Features

  • Two-channel H-bridge driver IC.
  • Operates from 2.0 V to 7.0 V.
  • Maximum output current of 1.0 A.
  • Low total RDS(on) of 1.0 Ω.
  • Surface mount 16-UQFN package.

MC34933EPR2 Applications

  • Drives bipolar stepper motors.
  • Controls two DC motors independently.
  • Ideal for battery-powered portable devices.
  • Used in consumer electronics and robotics.

MC34933EPR2 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the MC34933EPR2?

2.0 V to 7.0 V.

What is the package type of the MC34933EPR2?

16-UQFN Exposed Pad (3x3 mm).

What is the operating temperature range?

-20°C to 150°C (junction).

What is the maximum output current?

1.0 A at 25°C.

What is the maximum PWM frequency?

Up to 200 kHz.

Is the MC34933EPR2 lead-free?

Yes, it is a lead-free product.

What is the typical RDS(on) of the driver?

0.8 ohm typical, 1.0 ohm maximum at 25°C.
