| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
43 pcs
|
43 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Industrial Grade | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Slew Rate | |
| Storage Temperature | |
| Supply Current | |
| Tape & Reel |
The MC34074DG from On Semiconductor is a JFET operational amplifier designed for various applications requiring high performance and multiple channels. This device integrates four independent operational amplifiers within a single package, simplifying circuit design and reducing board space.
Key electrical characteristics include a gain bandwidth product of 4.5 MHz and a slew rate of 13V/µs, enabling efficient signal amplification. The amplifier operates with a wide supply voltage span ranging from 3V to 44V and provides an output current of 30 mA per channel. Input bias current is specified at 100 nA, and input offset voltage is 1 mV.

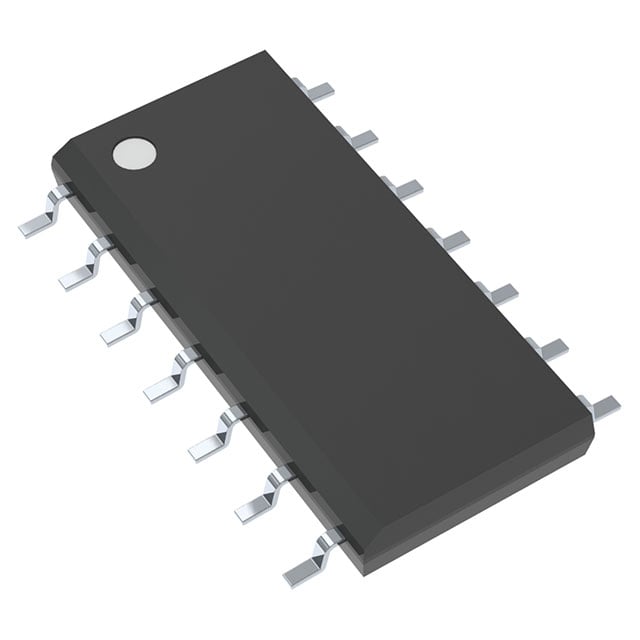

The MC34074DG is housed in a 14-SOIC surface-mount package, measuring 0.154 inches (3.90mm) in width. It is designed for operation within a temperature range of 0°C to 70°C.
This component is suitable for applications requiring amplification of signals in systems with moderate to high supply voltages. Its quad-channel configuration makes it ideal for multi-channel audio processing, active filters, and general-purpose amplification tasks.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.95 | $2.95 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MC34074DG contains 4 circuits.
The gain bandwidth product of the MC34074DG is 4.5 MHz.
The slew rate of the MC34074DG is 13 V/µs.
The operating temperature range for the MC34074DG is 0°C to 70°C.
The MC34074DG is available in a 14-SOIC package.
