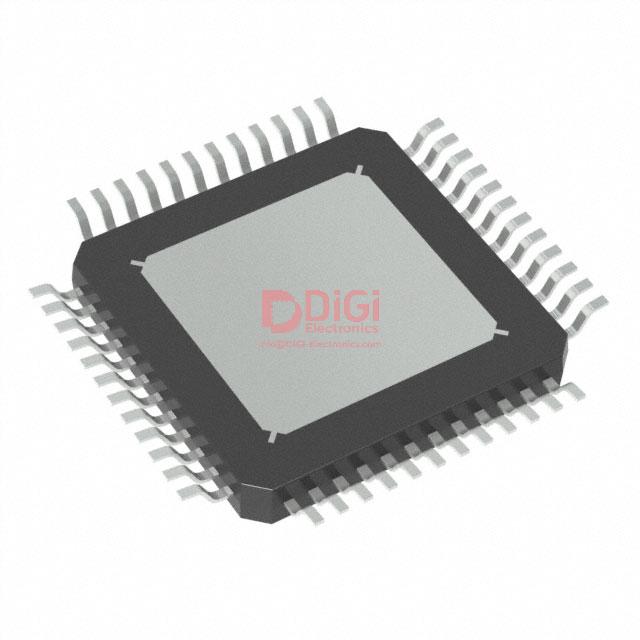

MC33SB0400ES The NXP Semiconductors MC33SB0400ES is an ABS motorcycle braking chip designed for harsh environments. It offers multiple drivers and interfaces for advanced braking system control.
Mfr Part #:

MC33SB0400ES

Available from 1 distributors
Mfr Name: NXP Semiconductors
NXP Semiconductors
The NXP Semiconductors MC33SB0400ES is an ABS motorcycle braking chip designed for harsh environments. It offers multiple drivers and interfaces for advanced braking system control.
✓ Total Stock: 1,300 pcs
$ Price Range: $0.75

MC33SB0400ES Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
1,300 pcs
On Request
1300 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MC33SB0400ES Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Interface
Mounting Type
Operating Temperature
Supplier Device Package
Supplier Package
Voltage
View Similar Products (0)

MC33SB0400ES Description

Short technical summary and product information.

The MC33SB0400ES from NXP Semiconductors is an antilock brake controller chip specifically designed for motorcycle braking systems. It integrates four high-current low-side drivers for solenoid valves and two configurable wheel speed sensor inputs capable of handling active sensors.



This chip also features high-side gate drivers for controlling external N-channel MOSFETs for pump motor and master relay functions. Additional integrated features include a warning lamp driver and a K-line transceiver. The digital I/O pins are configurable for 5.0 V and 3.3 V levels, and communication is handled via a standard 16-bit SPI protocol with watchdog.



The MC33SB0400ES is built on SMARTMOS technology and operates within a voltage range of 6V to 20V, with an operating temperature range of -40°C to 125°C. It is supplied in a 48-VFQFN exposed pad package suitable for surface mounting.



This component is ideal for ABS applications in motorcycles, providing robust control and monitoring capabilities for critical braking functions.

MC33SB0400ES Quick Information

Product Type: Power Management IC
Canonical Name: MC33SB0400ES ABS Motorcycle Braking Chip
Subcategory: Specialized

MC33SB0400ES Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MC33SB0400ES Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

MC33SB0400ES Features

  • Four PWM valve drivers included.
  • Two active wheel speed sensor interfaces.
  • SPI and K-line communication supported.
  • Operates from 6V to 20V.
  • Surface mount 48-VFQFN package.

MC33SB0400ES Applications

  • Designed for motorcycle ABS braking.
  • Controls solenoid valves and pump motors.
  • Integrates warning lamp driver.
  • Suitable for harsh motorcycle environments.

MC33SB0400ES FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for the MC33SB0400ES?

-40°C to 125°C

What is the operating voltage range for the MC33SB0400ES?

6V to 20V

What type of package is the MC33SB0400ES supplied in?

48-VFQFN Exposed Pad

How is the MC33SB0400ES mounted?

Surface Mount

What communication protocols does the MC33SB0400ES support?

SPI and K-Line

How many valve drivers does the MC33SB0400ES have?

4

What kind of wheel speed sensor interfaces are available?

Active
