| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,473 pcs
|
4473 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,039 pcs
|
1039 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Supplier Device Package | |
| Voltage |

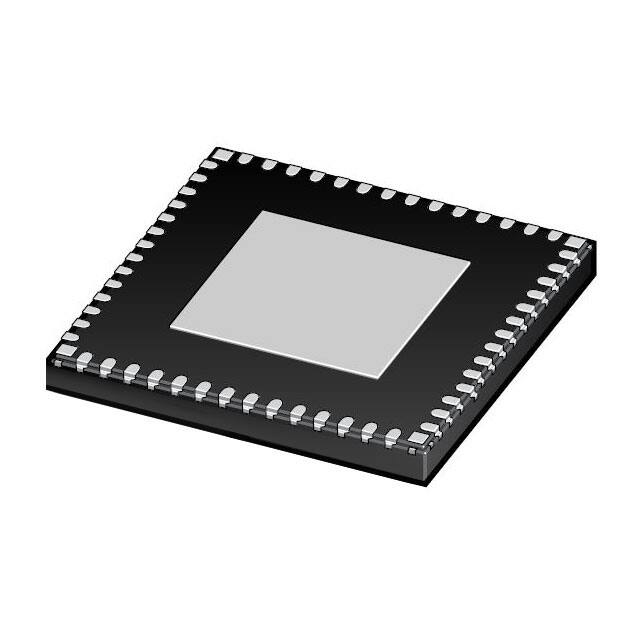

The NXP Semiconductors MC33PF8200A0ES is a versatile 12-channel power management integrated circuit (PMIC) engineered for high-performance applications, particularly those based on i.MX 8 and S32x processors. This PMIC integrates seven high-efficiency buck converters and four linear regulators, providing comprehensive power solutions for processors, memory, and various peripherals.
Key features include a built-in one-time programmable (OTP) memory for startup configurations, reducing external component count. Regulator parameters are adjustable via a high-speed I2C interface (3.4 MHz) after startup, offering system flexibility. The device also includes an RTC supply, coin cell charger, and a watchdog timer/monitor.
Designed for demanding environments, the MC33PF8200A0ES operates within a supply voltage range of 2.5V to 5.5V and an extended temperature range of -40°C to 105°C. It is housed in a compact 56-pin 8x8 mm QFN package, suitable for surface mounting.
This PMIC incorporates a monitoring circuit compliant with automotive safety integrity level (ASIL) B, making it suitable for automotive applications. Its robust design and integrated features simplify power management in complex embedded systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2.7V to 5.5V.
56-VFQFN Exposed Pad (56-HVQFN 8x8).
-40°C to 105°C.
12.
7.
4.
ASIL B.
