MC33HB2001FK The NXP Semiconductors MC33HB2001FK is a SMARTMOS monolithic H-Bridge Power IC designed for DC and servo motor control. It offers SPI configurability and diagnostic capabilities.
Mfr Part #:

MC33HB2001FK

Available from 1 distributors
Mfr Name: NXP Semiconductors
NXP Semiconductors
The NXP Semiconductors MC33HB2001FK is a SMARTMOS monolithic H-Bridge Power IC designed for DC and servo motor control. It offers SPI configurability and diagnostic capabilities.
✓ Total Stock: 1,480 pcs
$ Price Range: $0.75

MC33HB2001FK Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
1,480 pcs
On Request
1480 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MC33HB2001FK Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Fault Protection
Features
Interface
Load Type
Mounting Type
Operating Temperature
Output Configuration
Rds On (Typ)
Supplier Device Package
Technology
Thermal Resistance
Voltage
View Similar Products (0)

MC33HB2001FK Description

Short technical summary and product information.

The MC33HB2001FK from NXP Semiconductors is a SMARTMOS monolithic H-Bridge Power IC enhanced with SPI configurability and diagnostic features. It is designed for DC and servo motor control applications, capable of handling inductive loads with peak currents exceeding 10 A. The nominal continuous average load current is 3.0 A.



Key electrical features include a wide operating voltage range of 5.0 V to 28 V, selectable current limits (5.4/7.0/8.8/10.7 A) and slew rates (0.25 V/μs to >16 V/μs) via SPI, and low RDS(on) integrated MOSFETs (125 mΩ max). It provides advanced diagnostic reporting through SPI, including undervoltage, overvoltage, short-circuit, and overtemperature conditions. A current mirror output offers real-time current feedback with less than 5.0 % error.



This IC is designed to meet ISO 26262 safety requirements and is AEC-Q100 grade 1 qualified, making it suitable for automotive applications. It operates within a junction temperature range of -40°C to 150°C and features excellent thermal resistance of less than 1.0 °C/W.

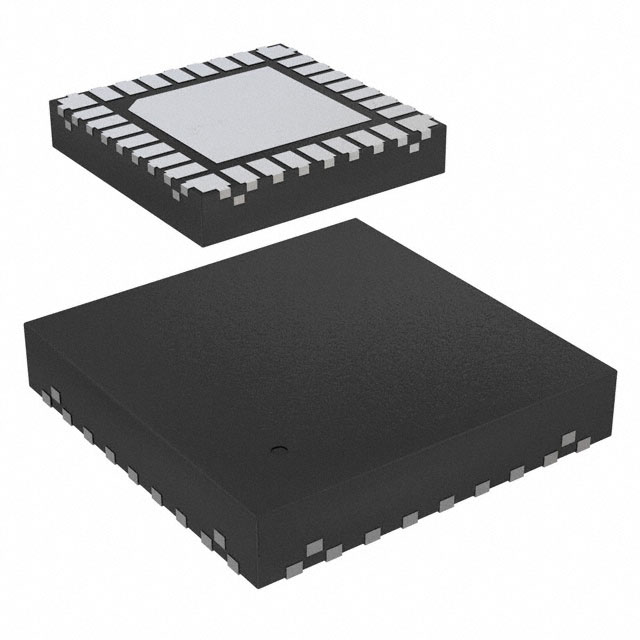

The MC33HB2001FK is available in a 32-pin PQFN (8x8) exposed pad package and supports surface mount. It can be operated without SPI with default settings for slew rate and current limit.

MC33HB2001FK Quick Information

Product Type: H-Bridge Power IC
Canonical Name: MC33HB2001FK 10 A H-bridge, SPI programmable brushed DC motor driver
Subcategory: Full Half-Bridge Drivers

MC33HB2001FK Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MC33HB2001FK Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

MC33HB2001FK Features

  • SPI programmable H-bridge power IC.
  • Controls DC and servo motors.
  • Wide 5V to 28V operating range.
  • Selectable current limits and slew rates.
  • AEC-Q100 Grade 1 qualified.

MC33HB2001FK Applications

  • Electronic throttle control.
  • Exhaust gas recirculation control.
  • Turbo and waste flap control.
  • Electric pumps and auxiliaries.
  • General purpose motor control.

MC33HB2001FK FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the MC33HB2001FK?

The device operates from 5.0V to 28V.

What is the continuous load current rating?

3.0A nominal.

What is the peak load current capability?

Greater than 10A.

What current limit thresholds are available?

5.4A, 7.0A, 8.8A, and 10.7A, selectable via SPI.

What are the available slew rates?

Eight selectable slew rates from 0.25 V/μs to >16 V/μs via SPI.

What is the operating temperature range?

-40°C to 150°C (junction temperature).

What package is the MC33HB2001FK available in?

32-PQFN (8x8 mm) surface-mount package.
