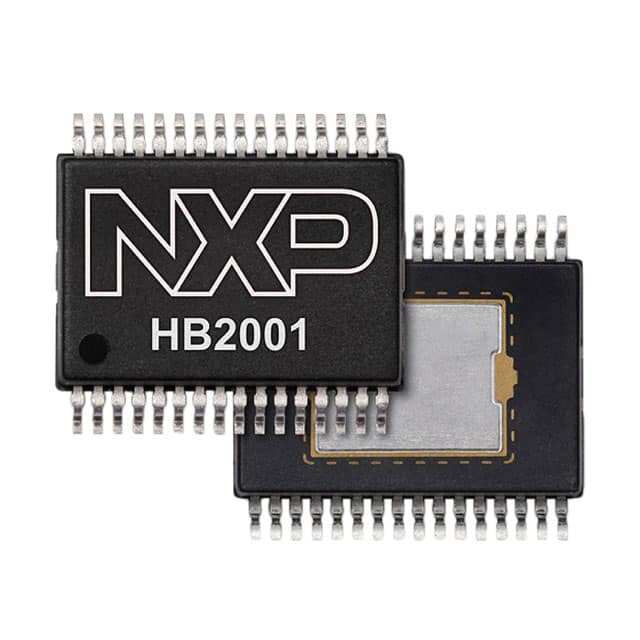

The MC33HB2001EKR2 from NXP Semiconductors is a versatile H-Bridge Power IC designed for brushed DC motor and servo motor control applications. It features SPI configurability for advanced diagnostic reporting, including undervoltage, overvoltage, short circuits, and overtemperature shutdown.
This IC supports inductive loads with peak currents exceeding 10 A and a nominal continuous average load current of 3.0 A. It offers eight selectable slew rates (0.25 V/μs to >16 V/μs) and four selectable current limits (5.4 A to 10.7 A) via SPI for performance optimization. For applications not requiring SPI, it can operate with default settings of 2.0 V/μs slew rate and a 7.0 A current limit.
The MC33HB2001EKR2 operates over a wide voltage range of 5.0 V to 28 V. It includes integrated protection features for overtemperature, undervoltage, and short-circuit conditions. The device is AEC-Q100 grade 1 qualified, meeting stringent automotive application requirements.
Packaged in a 32-pin SOIC-EP (Exposed Pad), this surface-mount component is suitable for applications such as electronic throttle control, exhaust gas recirculation control, turbo/waste flap control, and electric pumps.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 5.0 V to 28 V.
The nominal continuous average load current is 3.0 A.
The MC33HB2001EKR2 is supplied in a 32-pin SOIC-EP package.
The operating temperature range is -40°C to 150°C (TJ).
Yes, it has four selectable current limits via SPI: 5.4 A, 7.0 A, 8.8 A, and 10.7 A.
