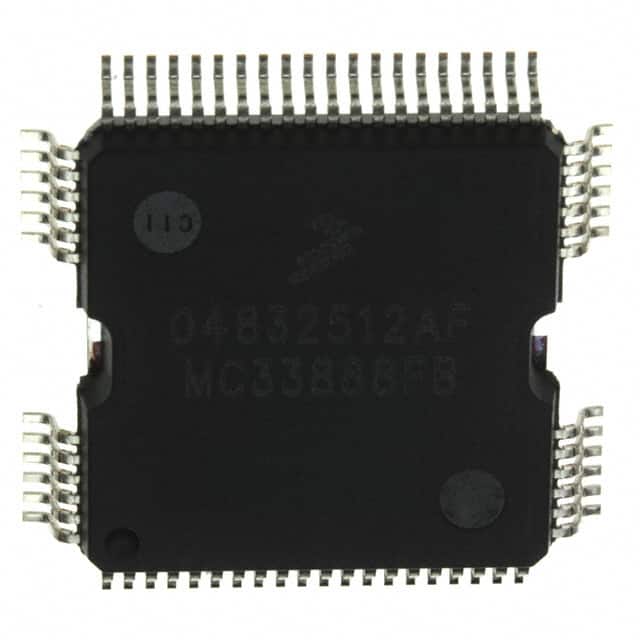

MC33888FB The NXP Semiconductors MC33888FB is a versatile power distribution switch featuring a combination of high-side and low-side MOSFET drivers. It offers 12 outputs and an SPI interface for control.
Mfr Part #:

MC33888FB

Available from 1 distributors
Mfr Name: NXP Semiconductors
NXP Semiconductors
The NXP Semiconductors MC33888FB is a versatile power distribution switch featuring a combination of high-side and low-side MOSFET drivers. It offers 12 outputs and an SPI interface for control.
✓ Total Stock: 2,500 pcs
$ Price Range: $0.32

MC33888FB Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
2,500 pcs
On Request
2500 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MC33888FB Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Fault Protection
Features
Interface
Mounting Type
Number of Outputs
Operating Temperature
Output Configuration
Output Type
Rds On (Typ)
Supplier Device Package
Switch Type
Voltage
View Similar Products (0)

MC33888FB Description

Short technical summary and product information.

The MC33888FB from NXP Semiconductors is a power distribution switch designed for automotive applications. It integrates four high-side MOSFETs (two 10 mΩ and two 40 mΩ) and eight low-side drivers (600 mΩ each) in a single package.



Control and diagnostics are managed via a 16-bit SPI interface. Each high-side output can also be controlled individually using a parallel input for PWM applications. The low-side outputs share a single configurable direct input.



Key features include a wide operating voltage range of 6.0 V to 27 V, SPI control for overcurrent limit, current sense, open load detection, and watchdog timeout. It also provides SPI reporting for program status and faults, along with high-side analog current feedback.



The device is available in a 64-PQFP package and is surface-mount compatible. It offers various fault protection mechanisms, including current limiting, open load detection, and overvoltage protection.

MC33888FB Quick Information

Product Type: Power Distribution Switch
Canonical Name: MC33888FB Quad High-Side and Octal Low-Side Switch
Subcategory: Load Driver

MC33888FB Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MC33888FB Estimated Pricing

Qty Low High
1+ $0.32 $0.32

Estimated market price range - modelled values for guidance only, not live distributor offers.

MC33888FB Features

  • Combines 4 high-side and 8 low-side drivers.
  • Operates from 6.0 V to 27 V supply voltage.
  • 16-bit SPI interface for control and diagnostics.
  • Includes current limiting and open load detection.
  • Surface mountable in a 64-PQFP package.

MC33888FB Applications

  • Automotive power switching applications.
  • Control of multiple loads.
  • Systems requiring SPI communication.
  • Protection against overcurrent events.
  • Monitoring of load status.

MC33888FB FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the MC33888FB?

The MC33888FB operates within a voltage range of 6 V to 27 V.

What is the typical Rds On for the high-side outputs of the MC33888FB?

The typical Rds On for the high-side outputs is 10 mOhm and 40 mOhm, measured at VPWR = 4.5 V; VDD = 3.5 V.

What is the typical Rds On for the low-side outputs of the MC33888FB?

The typical Rds On for the low-side outputs is 600 mOhm, measured at VPWR = 4.5 V; VDD = 3.5 V.

What is the maximum SPI frequency for the MC33888FB?

The maximum SPI frequency for the MC33888FB is 2.1 MHz in Extended Mode, with VDD = 3.4 V.

What is the operating temperature range of the MC33888FB?

The MC33888FB has an operating temperature range of -40°C to 150°C (TJ).

How many outputs does the MC33888FB have?

The MC33888FB has 12 outputs, consisting of 4 high-side and 8 low-side outputs.

What type of package does the MC33888FB come in?

The MC33888FB is supplied in a 64-PQFP (14x14) package, also referred to as 64-PowerBQFP.
