MC33596FJER2 The NXP Semiconductors MC33596FJER2 is an RF Receiver supporting FSK and OOK modulation. It operates across multiple frequencies from 304MHz to 915MHz.
Mfr Part #:

MC33596FJER2

Available from 1 distributors
Mfr Name: NXP Semiconductors
NXP Semiconductors
The NXP Semiconductors MC33596FJER2 is an RF Receiver supporting FSK and OOK modulation. It operates across multiple frequencies from 304MHz to 915MHz.
✓ Total Stock: 38,400 pcs
$ Price Range: $0.99

MC33596FJER2 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
38,400 pcs
On Request
38400 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MC33596FJER2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Antenna Connector
Applications
Current
Data Interface
Data Rate (Max)
Frequency
Modulation or Protocol
Mounting Type
Operating Temperature
Sensitivity
Supplier Device Package
Tape & Reel
Voltage
View Similar Products (0)

MC33596FJER2 Description

Short technical summary and product information.

The MC33596FJER2 from NXP Semiconductors is an RF Receiver designed for general data transfer applications. It supports FSK and OOK modulation protocols and operates on frequencies including 304, 315, 426, 434, 868, and 915MHz.



This receiver features a maximum data rate of 22.4 kBaud and a sensitivity of -104dBm, making it suitable for various wireless communication tasks. The operating voltage range is 2.7V to 3.6V and 4.5V to 5.5V, with a receiving current of 10.3mA.

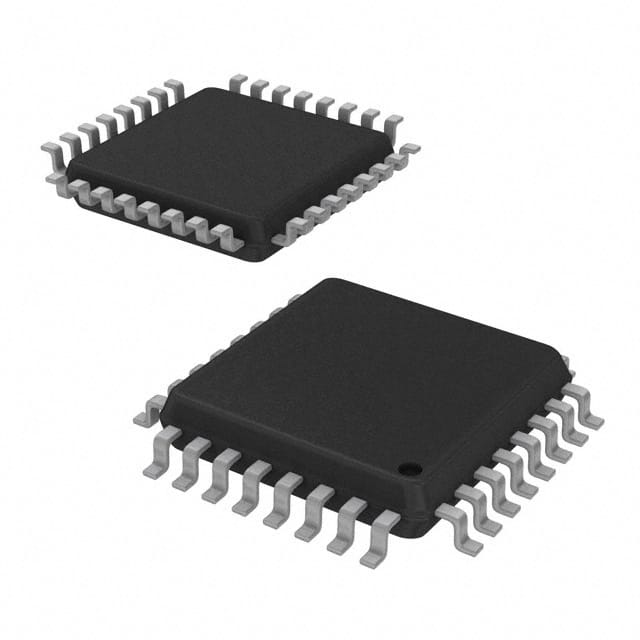

The MC33596FJER2 is housed in a 32-LQFP package and is designed for surface mounting. Its operating temperature range is -40°C to 85°C. The antenna connector is PCB surface mount type.

MC33596FJER2 Quick Information

Product Type: RF Receiver
Canonical Name: MC33596FJER2 RF Receiver
Subcategory: RF Receivers

MC33596FJER2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MC33596FJER2 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

MC33596FJER2 Features

  • Supports FSK and OOK modulation protocols.
  • Operates across multiple frequencies (304-915MHz).
  • High sensitivity of -104dBm.
  • Surface mount 32-LQFP package.
  • Wide operating temperature range.

MC33596FJER2 Applications

  • Suitable for general data transfer.
  • Ideal for wireless communication systems.
  • Used in remote control applications.
  • Applicable for sensor networks.

MC33596FJER2 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the MC33596FJER2?

The operating voltage for the MC33596FJER2 is 2.7V to 3.6V and 4.5V to 5.5V.

What package type is the MC33596FJER2 available in?

The MC33596FJER2 is available in a 32-LQFP package.

What is the operating temperature range of the MC33596FJER2?

The operating temperature range for the MC33596FJER2 is -40°C to 85°C.

What modulation or protocol does the MC33596FJER2 support?

The MC33596FJER2 supports FSK and OOK modulation or protocols.

What is the maximum data rate for the MC33596FJER2?

The maximum data rate for the MC33596FJER2 is 22.4 kBaud.

What is the sensitivity of the MC33596FJER2?

The sensitivity of the MC33596FJER2 is -104dBm.
