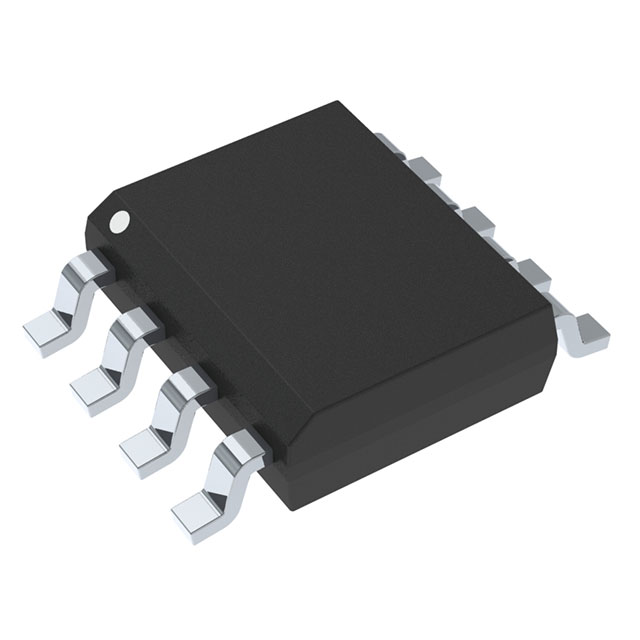

MC33201DR2G The ON Semiconductor MC33201DR2G is a single-channel, general-purpose operational amplifier with a 2.2MHz bandwidth. It operates from a 1.8V to 12V supply voltage and comes in an SOIC-8 package.
Mfr Part #:

MC33201DR2G

Available from 2 distributors
Mfr Name: On Semiconductor
On Semiconductor
The ON Semiconductor MC33201DR2G is a single-channel, general-purpose operational amplifier with a 2.2MHz bandwidth. It operates from a 1.8V to 12V supply voltage and comes in an SOIC-8 package.
✓ Total Stock: 42,684 pcs
$ Price Range: $0.28

MC33201DR2G Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
41,296 pcs
On Request
41296 pcs On Request 1 On Request On Request On Request On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,388 pcs
On Request
1388 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MC33201DR2G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Amplifier Type
Bandwidth
Halogen Free
Lead Style
Number of Channels
Number of Circuits
Number of Elements
Tape & Reel
Technology
View Similar Products (0)

MC33201DR2G Description

Short technical summary and product information.

The MC33201DR2G from ON Semiconductor is a general-purpose operational amplifier designed for a wide range of applications. This single-channel IC features a nominal gain bandwidth product of 2.2MHz and a slew rate of 1V/µs, making it suitable for signal processing tasks.



It operates with a supply voltage ranging from 1.8V to 12V, with a typical supply current of 900µA. The input offset voltage is a maximum of 6mV, and the voltage gain is rated at 109.54dB. The output current capability is 80mA per channel.



Packaged in a standard SOIC-8 configuration, the MC33201DR2G is designed for through-hole mounting. It operates within a temperature range of -40°C to 105°C. The device is RoHS3 compliant and Halogen Free.



This amplifier is well-suited for various electronic circuits requiring reliable amplification performance. Its specifications make it a versatile component for both hobbyist and industrial designs.

MC33201DR2G Quick Information

Product Type: Operational Amplifier
Series: MC33201
Canonical Name: MC33201DR2G General Purpose Op Amp
Subcategory: Linear Voltage Regulators

MC33201DR2G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free

MC33201DR2G Estimated Pricing

Qty Low High
1+ $0.28 $0.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

MC33201DR2G Features

  • Single channel general purpose op amp.
  • 2.2MHz gain bandwidth product.
  • Wide 1.8V to 12V supply voltage.
  • SOIC-8 package for through-hole mounting.
  • Operates from -40°C to 105°C.

MC33201DR2G Applications

  • Suitable for general analog signal processing.
  • Ideal for low-power circuit designs.
  • Used in various electronic amplification tasks.
  • Component for embedded systems.

MC33201DR2G FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for the MC33201DR2G?

The MC33201DR2G operates within a minimum temperature of -40°C and a maximum temperature of 105°C.

What is the maximum input offset voltage of the MC33201DR2G?

The maximum input offset voltage for the MC33201DR2G is 6mV.

What is the supply voltage range for the MC33201DR2G?

The MC33201DR2G operates with a minimum supply voltage of 1.8V and a maximum supply voltage of 12V.

What is the gain bandwidth product of the MC33201DR2G?

The MC33201DR2G has a nominal gain bandwidth product of 2.2MHz.

How many channels does the MC33201DR2G operational amplifier have?

The MC33201DR2G has 1 channel.

What is the slew rate of the MC33201DR2G?

The nominal slew rate for the MC33201DR2G is 1V/µs.

What is the package type for the MC33201DR2G?

The MC33201DR2G is available in a SOIC package.
