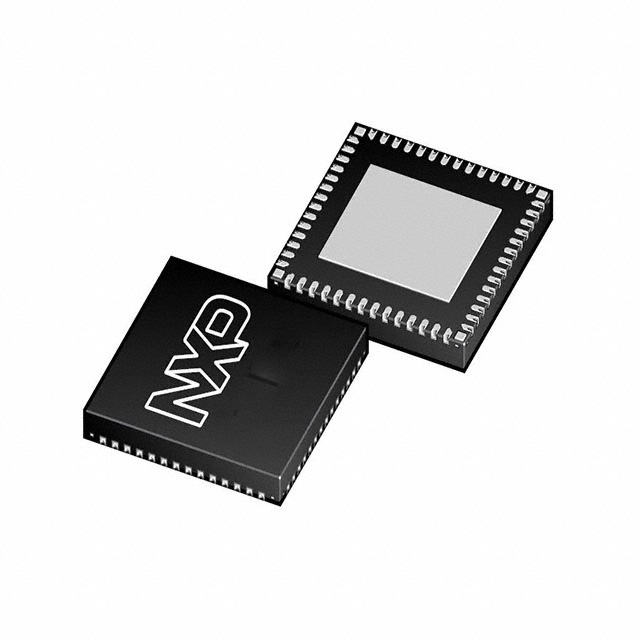

MC32PF8121A0EP The NXP Semiconductors PF8121 is a 12-channel power management integrated circuit designed for high-performance consumer applications. It features up to seven high-efficiency buck converters and four linear regulators.
Mfr Part #:

MC32PF8121A0EP

Available from 3 distributors
Mfr Name: NXP Semiconductors
NXP Semiconductors
The NXP Semiconductors PF8121 is a 12-channel power management integrated circuit designed for high-performance consumer applications. It features up to seven high-efficiency buck converters and four linear regulators.
✓ Total Stock: 63,619 pcs
$ Price Range: $0.75

MC32PF8121A0EP Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
57,942 pcs
On Request
57942 pcs On Request 1 On Request On Request On Request On Request On Request
Fe Components ✓
Non-Authorised Inventory information
5,500 pcs
On Request
5500 pcs On Request 1 On Request On Request On Request On Request On Request
Seba Components ✓
Non-Authorised Inventory information
177 pcs
On Request
177 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MC32PF8121A0EP Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Mounting Type
Operating Temperature
Supplier Device Package
Voltage
View Similar Products (0)

MC32PF8121A0EP Description

Short technical summary and product information.

The PF8121 from NXP Semiconductors is a versatile 12-channel power management integrated circuit (PMIC) tailored for high-performance consumer applications. This device integrates up to seven high-efficiency buck converters and four linear regulators, providing comprehensive power solutions for processors, memory, and various peripherals.



Key features include a built-in one-time programmable (OTP) memory for startup configurations, reducing external component count. Regulator parameters are adjustable via a high-speed I2C interface after startup, offering system flexibility. The PF8121 also includes an RTC supply, coin cell charger, and a watchdog timer/monitor.



This PMIC operates with an input voltage range of 2.7 V to 5.5 V and has an operating temperature range of -40°C to 85°C. It is supplied in a 56-pin 8x8 QFN package, suitable for surface mount applications.



The PF8121 is designed to power complex systems like those based on the i.MX 8M Mini processor, supporting various voltage rails for CPU, GPU, memory, and I/O.

MC32PF8121A0EP Quick Information

Product Type: Power Management IC
Canonical Name: 12-Channel Power Management Integrated Circuit
Subcategory: Specialized

MC32PF8121A0EP Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MC32PF8121A0EP Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

MC32PF8121A0EP Features

  • Up to seven high-efficiency buck converters
  • Four linear regulators with load switch options
  • Built-in OTP memory for startup configurations
  • 3.4 MHz I2C communication interface
  • 56-pin 8x8 QFN package

MC32PF8121A0EP Applications

  • Powers processors and memory modules
  • Suitable for consumer applications
  • Supports i.MX 8M Mini systems
  • Used in industrial and IoT designs

MC32PF8121A0EP FAQs

6 frequently asked questions generated from this part’s specifications.
How many buck converters does the PF8121 offer?

The PF8121 offers up to seven high-efficiency buck converters.

How many linear regulators are included in the PF8121?

The PF8121 includes four linear regulators with load switch options.

What is the communication interface for the PF8121?

The PF8121 features a 3.4 MHz I2C communication interface.

What is the operating temperature range for this power management IC?

The operating temperature range for the PF8121 is -40°C to 85°C (TA).

What is the input voltage range for the PF8121?

The PF8121 accepts an input voltage range of 2.7 V to 5.5 V.

What package type is the PF8121 supplied in?

The PF8121 is supplied in a 56-pin 8x8 QFN package.
