| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
22 pcs
|
22 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Country of Origin | |
| Display Type | |
| Failure Rate | |
| Operating Temperature | |
| SVHC Present |

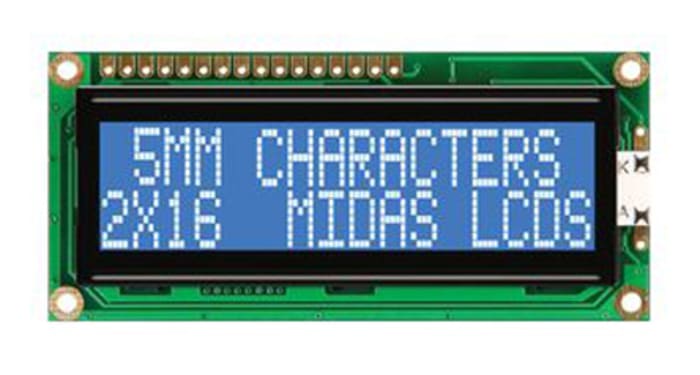

The Midas Displays MC21605G6WD-BNMLW is a G series alphanumeric LED LCD monochrome display. It offers a character matrix of 2x16, providing clear text output with a blue illumination on a white background. The display utilizes an LED backlight for visibility.
Key specifications include a viewing area of 66 x 16 mm and external dimensions of 84mm width, 44mm height, and 13.5mm depth. The character height is 5.2mm and character width is 3mm. This display supports an 8-bit interface and operates reliably within a temperature range of -20°C to 70°C.
Constructed with chip-on-board (COB) mechanical construction, this LCD display is suitable for applications requiring straightforward alphanumeric information display. It features a parallel interface and is designed for general-purpose use where monochrome text output is needed.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Midas MC21605G6WD-BNMLW display has a character matrix of 2 x 16.
The operating temperature range for this display is -20°C to 70°C.
The Midas MC21605G6WD-BNMLW uses an LED backlight.
The illumination color is blue and the background color is white.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
