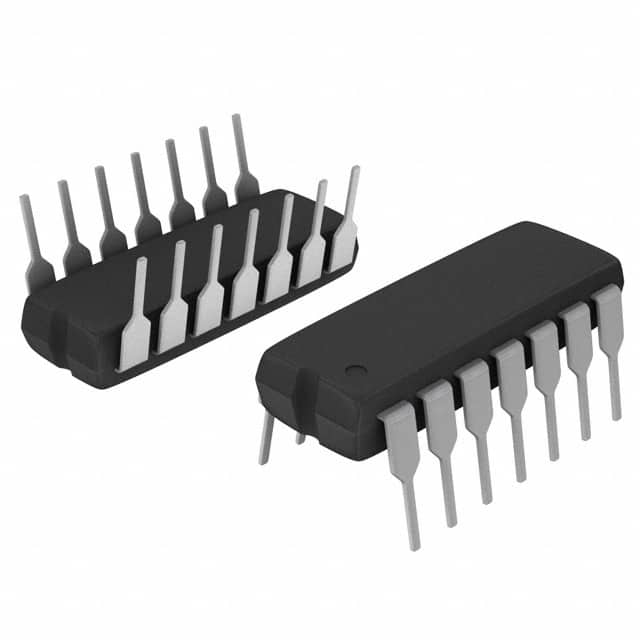

The MC1496PG from ON Semiconductor is a versatile balanced modulator and demodulator integrated circuit. It is designed for applications where the output voltage is a product of an input voltage (signal) and a switching function (carrier). Typical uses include suppressed carrier and amplitude modulation, synchronous detection, FM detection, phase detection, and chopper applications.
Key features include excellent carrier suppression, with typical values of -65 dB at 0.5 MHz and -50 dB at 10 MHz. It also boasts high common mode rejection of -85 dB typical. The device offers adjustable gain and signal handling capabilities, with balanced inputs and outputs for optimal performance. This IC contains 8 active transistors.
The MC1496PG is available in a 14-pin DIP (Dual In-line Package) with a 0.300" lead spacing, suitable for through-hole mounting. The datasheet indicates that a Pb-free package option is available. The operating temperature range for the MC1496 variant is 0 to +70 °C, while the MC1496B variant extends this to -40 to +125 °C.
| Qty | Low | High |
|---|---|---|
| 1+ | $44.15 | $44.15 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical carrier suppression is -65 dB at 0.5 MHz and -50 dB at 10 MHz.
The typical common mode rejection is -85 dB.
The operating temperature range is 0 to +70 °C for the MC1496 and -40 to +125 °C for the MC1496B.
The MC1496PG is available in a 14-DIP (0.300", 7.62mm) through-hole package.
Yes, the MC1496PG is RoHS3 Compliant.
The Moisture Sensitivity Level is 1.
