| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,000 pcs
|
6000 pcs | On Request | 1 | On Request | On Request | 00+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Failure Rate | |
| Features | |
| Logic Type | |
| Mounting Type | |
| Number of Circuits | |
| Number of Inputs | |
| Operating Temperature | |
| Package / Case | |
| SVHC Present | |
| Supplier Package |

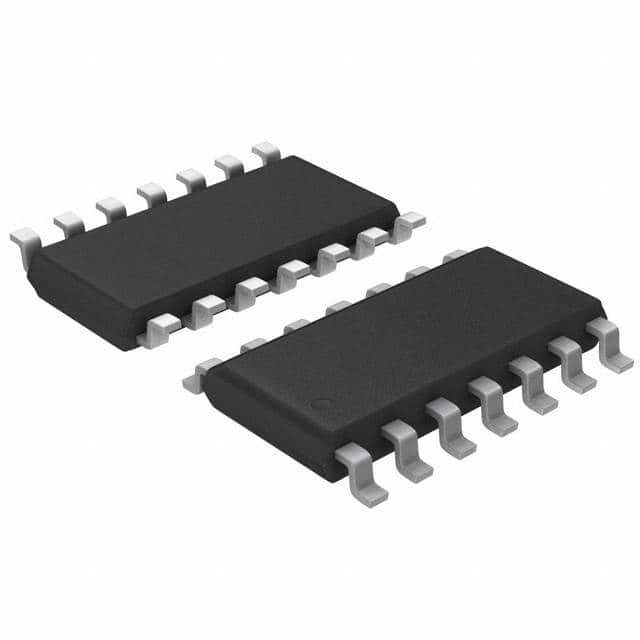

The MC14584BFEL is a 6-channel, 1-input inverter IC manufactured by onsemi, belonging to the 4000B series. This component features Schmitt trigger inputs, providing hysteresis for improved noise immunity. It operates across a broad supply voltage range from 3V to 18V.
Key electrical characteristics include a maximum quiescent current of 1A and output currents of 8.8mA for both high and low states. The input logic levels range from 1.6V to 4.6V for low and 3.4V to 10.5V for high. The maximum propagation delay is 80ns at 15V with a 50pF load.
This device is designed for surface mounting and comes in a SOEIAJ-14 package, which is equivalent to a 14-SOIC with a 5.30mm width. The operating temperature range is from -55C to 125C. The MC14584BFEL is noted as obsolete.
Environmental compliance includes RoHS3 compliance, an MSL of 1, and REACH unaffected status, though these are noted with low confidence.
The supply voltage range is 3V to 18V.
It comes in a 14-SOIC (0.209", 5.30mm Width) surface mount package, also known as SOEIAJ-14.
The operating temperature range is -55°C to 125°C.
It contains six inverter circuits.
The maximum propagation delay is 80ns at 15V supply with a 50pF load.
It belongs to the 4000B series of CMOS logic devices.
