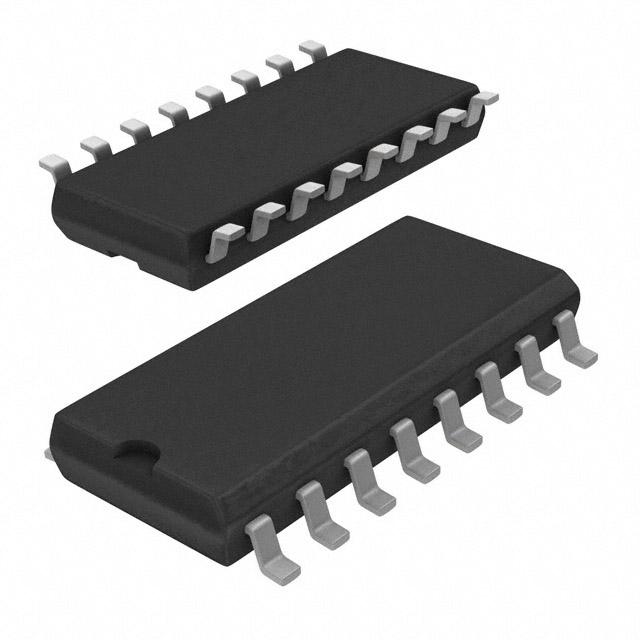

MC14538BF The ON Semiconductor MC14538BF is a dual precision, retriggerable, resettable monostable multivibrator. It operates from 3V to 18V with a propagation delay of 95 ns.
Mfr Part #:

MC14538BF

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
The ON Semiconductor MC14538BF is a dual precision, retriggerable, resettable monostable multivibrator. It operates from 3V to 18V with a propagation delay of 95 ns.
✓ Total Stock: 3,200 pcs
$ Price Range: $0.50

MC14538BF Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
3,200 pcs
On Request
3200 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MC14538BF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Independent Circuits
Logic Type
Mounting Type
Operating Temperature
Power Dissipation
Propagation Delay
Schmitt Trigger Input
Supplier Device Package
Voltage
View Similar Products (0)

MC14538BF Description

Short technical summary and product information.

The MC14538B is a dual, retriggerable, resettable monostable multivibrator from ON Semiconductor. It is designed to produce accurate output pulses with durations determined by external timing components. This device can be triggered from either the positive or negative-going edge of an input pulse.



Key electrical specifications include an operating voltage range of 3.0 Vdc to 18 Vdc and a propagation delay of 95 ns. The device features latched trigger and separate latched reset inputs. It is capable of driving low-power TTL loads.



The MC14538B operates over a wide temperature range of -55°C to +125°C. It is available in a 16-SOEIAJ package and is designed for surface mounting.



This component is pin-for-pin compatible with MC14528B and CD4528B (CD4098) devices, making it suitable for upgrades or replacements in existing designs.

MC14538BF Quick Information

Product Type: Monostable Multivibrator
Canonical Name: MC14538B Dual Precision Retriggerable/Resettable Monostable Multivibrator
Subcategory: Multivibrators

MC14538BF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MC14538BF Estimated Pricing

Qty Low High
1+ $0.50 $0.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

MC14538BF Features

  • Dual retriggerable resettable monostable multivibrator.
  • Wide 3.0 Vdc to 18 Vdc operational limits.
  • Accurate output pulse width determined by external components.
  • Triggerable from positive or negative-going edge.
  • Surface mount 16-SOEIAJ package.

MC14538BF Applications

  • Precision pulse generation circuits.
  • Timing control applications.
  • Retriggerable delay circuits.
  • Compatible with MC14528B and CD4528B.

MC14538BF FAQs

6 frequently asked questions generated from this part’s specifications.
What is the supply voltage range of the MC14538BF?

The MC14538BF operates from 3.0 V to 18 V DC.

What is the propagation delay of the MC14538BF?

The typical propagation delay is 95 ns.

What is the operating temperature range?

The operating temperature range is -55°C to +125°C.

What package is the MC14538BF available in?

The MC14538BF is available in a 16-SOIC (0.209", 5.30mm Width) surface mount package, also known as 16-SOEIAJ.

Does the MC14538BF have Schmitt trigger inputs?

Yes, the MC14538BF features Schmitt trigger inputs.

What is the pulse width range of the MC14538BF?

The pulse width range is 10 μs to 10 s.
