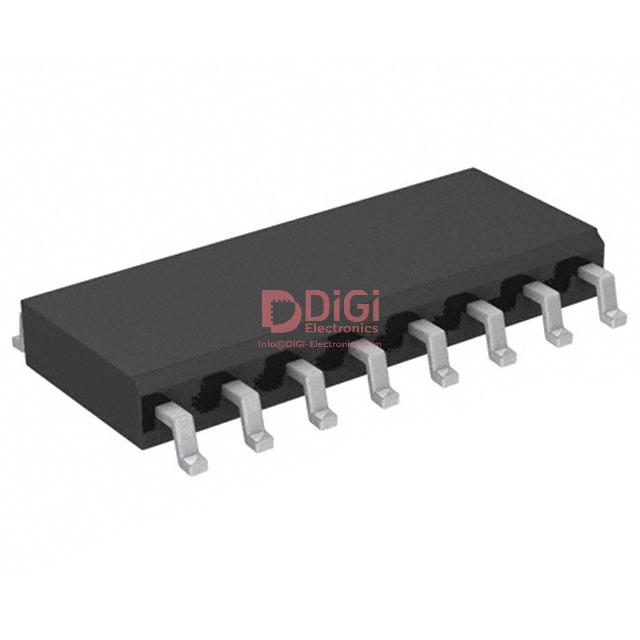

The MC145170D2 is a single-chip PLL Frequency Synthesizer from Motorola Semiconductor, designed for direct usage in MF, HF, and VHF bands. It features a robust power-on reset circuit and a special architecture that simplifies programming, supporting bit- or byte-oriented formats.
Key electrical specifications include an operating voltage range of 2.7 to 5.5 V. The maximum operating frequency is 185 MHz at 4.5 V minimum supply. Operating supply current varies with frequency and voltage, ranging from 0.6 mA at 30 MHz and 3.0 V to 5.8 mA at 185 MHz and 5.0 V.
The device operates within a temperature range of -40 to 85 °C. It includes fully programmable R and N counters with division ranges of 1 and 5 to 32,767 for the R counter, and 40 to 65,535 for the N counter. The MC145170D2 is available in a Plastic DIP package.
This PLL synthesizer is suitable for various applications requiring frequency synthesis. Its design incorporates features like on-chip support for an external crystal and phase detectors with linear transfer functions.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.95 | $2.95 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 2.7 to 5.5 V.
The maximum operating frequency is 185 MHz at a 4.5 V minimum supply.
The operating temperature range is -40 to 85 °C.
The R counter division range is 1 and 5 to 32,767.
The N counter division range is 40 to 65,535.
The maximum frequency is 21 MHz.
The supply voltage is 3 to 6 V.
