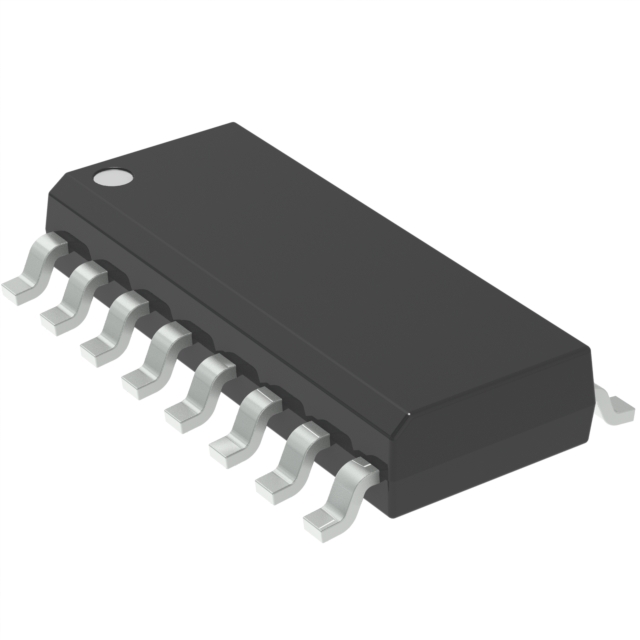

MC1413D The ON Semiconductor MC1413D is a high voltage, high current Darlington transistor array. It features seven NPN transistors in a 16-SOIC package.
Mfr Part #:

MC1413D

Available from 4 distributors
Mfr Name: On Semiconductor
On Semiconductor
The ON Semiconductor MC1413D is a high voltage, high current Darlington transistor array. It features seven NPN transistors in a 16-SOIC package.
✓ Total Stock: 138,916 pcs
$ Price Range: $1.44

MC1413D Available from 4 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MC1413D Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Input Voltage
Junction Temperature
Lead Spacing
Mounting Type
Number of Drivers
Output Voltage
Supplier Device Package
Type
Voltage
View Similar Products (0)

MC1413D Description

Short technical summary and product information.

The MC1413D from ON Semiconductor is a versatile Darlington transistor array designed for driving loads such as lamps, relays, and printer hammers. It contains seven NPN Darlington-connected transistors, each capable of handling high voltage and high current.



Key electrical specifications include an output voltage of 50V and a continuous collector current of 500mA. The device operates with a 5V logic input, making it suitable for TTL or CMOS systems. Internal suppression diodes protect against inductive load transients.



This array is available in a 16-SOIC surface mount package, offering convenient integration into printed circuit boards. The operating ambient temperature range varies depending on the specific variant, with options for industrial and automotive applications.



The MC1413D is well-suited for various industrial and consumer applications requiring robust output driving capabilities. Its design ensures freedom from problems associated with inductive loads, and its peak inrush current capability allows it to drive incandescent lamps effectively.

MC1413D Quick Information

Product Type: Darlington Transistor Array
Canonical Name: MC1413D High Voltage, High Current Darlington Transistor Array
Subcategory: Darlington

MC1413D Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MC1413D Estimated Pricing

Qty Low High
1+ $1.44 $1.44

Estimated market price range - modelled values for guidance only, not live distributor offers.

MC1413D Features

  • Seven NPN Darlington connected transistors.
  • High voltage and high current capability.
  • Internal suppression diodes for inductive loads.
  • Suitable for 5.0 V TTL or CMOS Logic.
  • Available in 16-SOIC package.

MC1413D Applications

  • Driving lamps and relays.
  • Printer hammer drivers.
  • Industrial applications.
  • Consumer applications.

MC1413D FAQs

6 frequently asked questions generated from this part’s specifications.
What is the maximum output voltage for the MC1413D?

The maximum output voltage is 50 V.

What is the continuous collector current rating?

The continuous collector current is 500 mA.

What is the operating temperature range for the MC1413?

The operating ambient temperature range for the MC1413 is -20°C to +85°C.

What type of package is the MC1413D supplied in?

The MC1413D is supplied in a 16-SOIC package.

Is the MC1413D RoHS compliant?

The MC1413D is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this part?

The Moisture Sensitivity Level is 1 Unlimited.
