Mfr Part #:

MC13783VK5

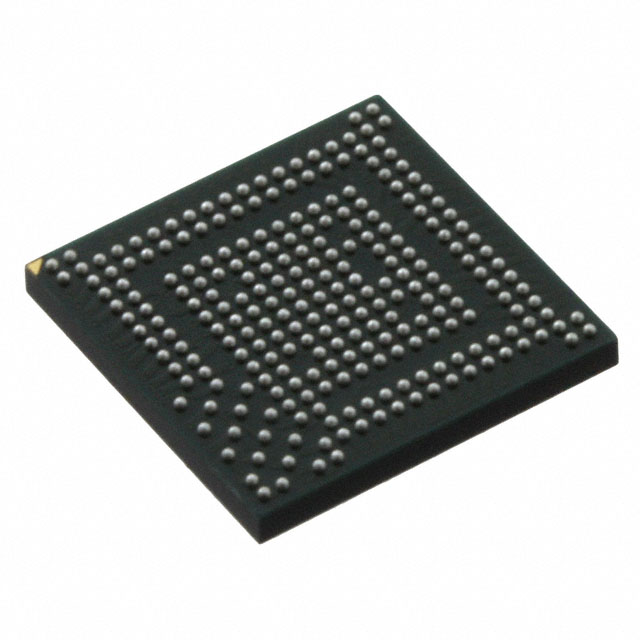

The MC13783VK5 is a highly integrated power management and audio component designed for handset and portable applications. It supports GSM, GPRS, EDGE, and UMTS standards.

✓ Total Stock: 7 pcs

$ Price Range: $0.75

MC13783VK5 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Speed Components Ltd ✓ Non-Authorised Inventory information	7 pcs On Request	7 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

MC13783VK5 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Freescale Semiconductor
Mounting Type	Surface Mount
SVHC Present	Not Present
Supplier Device Package	247-MAPBGA (10x10)

View Similar Products (0)

MC13783VK5 Description

Short technical summary and product information.

The Freescale Semiconductor MC13783VK5 is a versatile power management and audio circuit designed for advanced handset and portable applications, including those supporting GSM, GPRS, EDGE, and UMTS standards. This highly integrated component optimizes system size and reduces the bill of materials by combining essential power management and audio functions into a single module.

Key features include a 10-bit ADC for battery monitoring, a 13-bit Voice CODEC with dual ADC channels supporting narrow and wide band sampling, and a 16-bit Stereo DAC. The device also offers a battery charger interface for wall and USB charging, buck and boost switchers for processor core supply and backlight/USB OTG, and various regulators. Its flexible programming via 64 registers allows for adaptability to different processor requirements and dynamic voltage scaling (DVS) to save battery resources.

The MC13783VK5 is housed in a 10x10 mm MAPBGA-247 package, suitable for surface mount applications. Its operating temperature range is -30°C to +85°C, making it robust for various environmental conditions encountered in portable electronics.

MC13783VK5 Quick Information

Product Type: Power Management and Audio Circuit

Canonical Name: MC13783 Power Management and Audio Circuit

Subcategory: Power Management - Specialized

MC13783VK5 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

MC13783VK5 Estimated Pricing

Qty	Low	High
1+	$0.75	$0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

MC13783VK5 Features

Highly integrated power management and audio circuit.
Supports GSM, GPRS, EDGE, and UMTS standards.
Includes 10-bit ADC and 13-bit Voice CODEC.
Features 16-bit Stereo DAC for audio output.
Packaged in a 10x10 mm MAPBGA-247.

MC13783VK5 Applications

Ideal for handset and portable applications.
Suitable for smartphones and UMTS handsets.
Enables efficient power management in mobile devices.
Supports advanced audio functions for high-end devices.

MC13783VK5 FAQs

6 frequently asked questions generated from this part’s specifications.

What is the operating temperature range for the MC13783VK5?

The operating temperature range is -30°C to +85°C.

What type of package is the MC13783VK5 in?

The MC13783VK5 is available in a 247-MAPBGA (10x10 mm) package.

What is the mounting type for the MC13783VK5?

The mounting type is Surface Mount.

What is the resolution of the ADC in the MC13783VK5?

The MC13783VK5 features a 10-bit ADC.

What is the resolution of the CODEC in the MC13783VK5?

The MC13783VK5 includes a 13-bit Voice CODEC.

What is the resolution of the DAC in the MC13783VK5?

The MC13783VK5 has a 16-bit Stereo DAC.
