Mfr Part #:

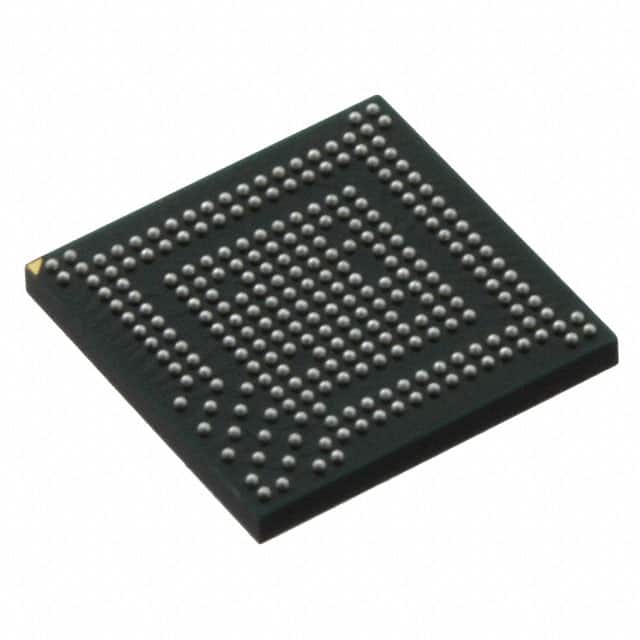

MC13783VK5

The NXP Semiconductors MC13783VK5 is a specialized power management IC designed for handheld and mobile devices. It features a surface mount package and operates within a temperature range of -40°C to 85°C.

✓ Total Stock: 6,000 pcs

$ Price Range: $0.75

MC13783VK5 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Components Technology Group, Inc. ✓ Non-Authorised Inventory information	6,000 pcs On Request	6000 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

MC13783VK5 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	Power Management - Specialized
Manufacturer Name	NXP Semiconductors
Applications	Handheld/Mobile Devices
Mounting Type	Surface Mount
Operating Temperature	-40°C ~ 85°C
SVHC Present	Not Present
Supplier Device Package	247-MAPBGA (10x10)

View Similar Products (0)

MC13783VK5 Description

Short technical summary and product information.

The MC13783VK5 from NXP Semiconductors is a highly integrated power management and audio component designed for handset and portable applications. It supports standards such as GSM, GPRS, EDGE, and UMTS, and implements high-performance audio functions suitable for smartphones and UMTS handsets.

This component is housed in a 247-TFBGA package with a 10x10 mm footprint, designed for surface mounting. It operates across a wide temperature range of -40°C to 85°C, making it suitable for various environmental conditions.

The MC13783VK5 offers a versatile solution with a high level of integration, reducing the overall bill of materials for power management and audio systems. Its programmability through 64 registers of 24-bit data allows for flexibility in system design. Key benefits include optimized system size and significant battery resource savings through implemented DVS (Dynamic Voltage Scaling).

This IC includes features such as a battery charger interface, a 10-bit ADC for battery monitoring, buck and boost switchers, and regulators. It also incorporates advanced audio functionalities including a 13-bit Voice CODEC with dual ADC channels, stereo recording capabilities, and a 16-bit stereo DAC.

MC13783VK5 Quick Information

Product Type: Power Management and Audio Circuit

Series: Atlas 3G

Canonical Name: MC13783VK5 Power Management and Audio Circuit

Subcategory: Power Management - Specialized

MC13783VK5 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

MC13783VK5 Estimated Pricing

Qty	Low	High
1+	$0.75	$0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

MC13783VK5 Features

Integrated power management and audio functions.
Designed for handset and portable applications.
247-MAPBGA (10x10) package for surface mounting.
Wide operating temperature range: -40°C to 85°C.
RoHS3 Compliant status.

MC13783VK5 Applications

Ideal for smartphones and UMTS handsets.
Suitable for GSM, GPRS, and EDGE devices.
Enables efficient power management in portable electronics.
Supports high-performance audio functions.

MC13783VK5 FAQs

4 frequently asked questions generated from this part’s specifications.

What is the operating temperature range for the MC13783VK5?

The operating temperature range for the MC13783VK5 is -40°C to 85°C.

What package type is the MC13783VK5 supplied in?

The MC13783VK5 is supplied in a 247-TFBGA package.

What are the common applications for the MC13783VK5?

The MC13783VK5 is designed for handheld and mobile devices.

Is the MC13783VK5 RoHS compliant?

Yes, the MC13783VK5 is RoHS3 Compliant.
