| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,380 pcs
|
3380 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Data Rate (Max) | |
| Frequency | |
| GPIO | |
| Lead Spacing | |
| Memory Size | |
| Modulation | |
| Mounting Type | |
| Operating Current (Typical @ Transmitting) | |
| Operating Temperature | |
| Power | |
| Power (Output) | |
| RF Family | |
| Sensitivity | |
| Serial Interfaces | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Voltage Supply |
The NXP Semiconductors MC13237CHT is an RF Transceiver IC with an integrated microcontroller, designed for 802.15.4 applications. It operates in the 2.4GHz frequency band and supports O-QPSK modulation.
Key electrical specifications include a maximum data rate of 250kbps, an output power of 2dBm, and a sensitivity of -93dBm. The device features 128kB of Flash memory and 8kB of RAM, along with 28 GPIO pins. It supports serial interfaces such as I²C, SPI, and UART.

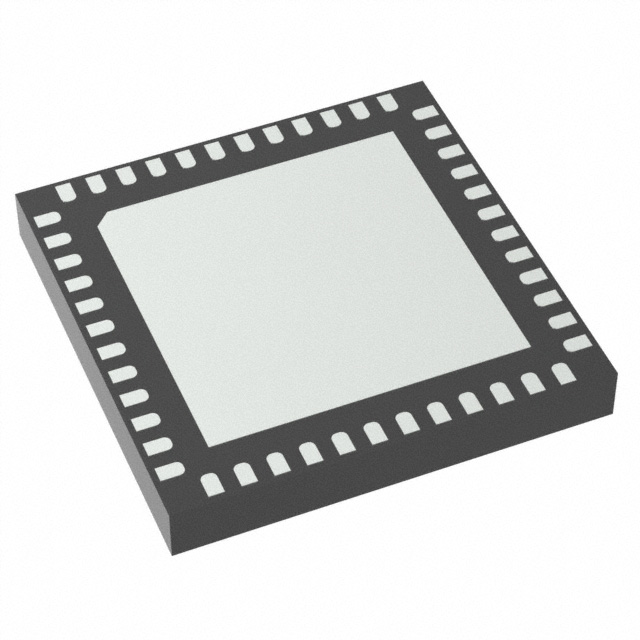

This IC is suitable for a wide operating temperature range of -40°C to 85°C and requires a supply voltage between 1.8V and 3.6V. It is available in a 48-VFQFN Exposed Pad package and is designed for surface mount applications.
The MC13237CHT is a versatile component for wireless communication systems requiring low power and reliable data transfer.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.43 | $3.43 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is between 1.8V and 3.6V.
It is available in a 48-VFQFN Exposed Pad package.
The operating temperature range is -40°C to 85°C.
