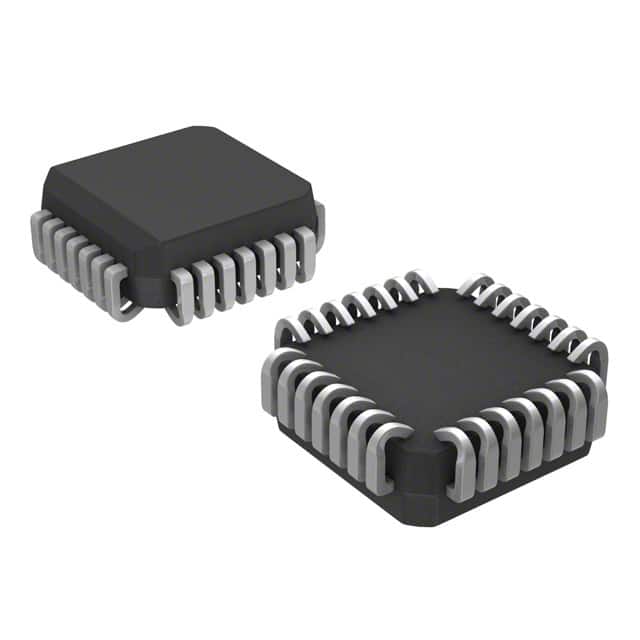

The MC10H640FNR2 from On Semiconductor is a specialized clock driver designed to generate the necessary clock signals for microprocessors such as the 68030 and 68040. It meets critical clock specifications including part-to-part skew, within-part skew, and duty cycle skew required by these processors.
This device offers flexibility with a choice of either TTL or PECL for the input clock. It features divide-by-two and divide-by-four stages to achieve required duty cycle skew and generate MPU clocks. For example, a 100 MHz input clock can yield 50 MHz and 25 MHz output clocks.
The MC10H640FNR2 operates from a single +5.0 V supply and has a frequency capability of up to 135 MHz. It is housed in a 28-PLCC Surface Mount package and operates within a temperature range of 0°C to 85°C.
Key features include asynchronous reset, and it supports both PECL and TTL input types, providing a TTL output. The device is also noted as Pb-Free and Halogen Free.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.70 | $3.70 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MC10H640FNR2 generates clocks for the 68030, 68040, and similar microprocessors.
The MC10H640FNR2 supports both PECL and TTL input clock signals and provides TTL outputs.
The MC10H640FNR2 operates at a frequency of 135 MHz.
The operating voltage range for the MC10H640FNR2 is 4.75 V to 5.25 V.
The MC10H640FNR2 operates within a temperature range of 0°C to 85°C.
The MC10H640FNR2 is supplied in a 28-PLCC (11.51x11.51) Surface Mount package.
