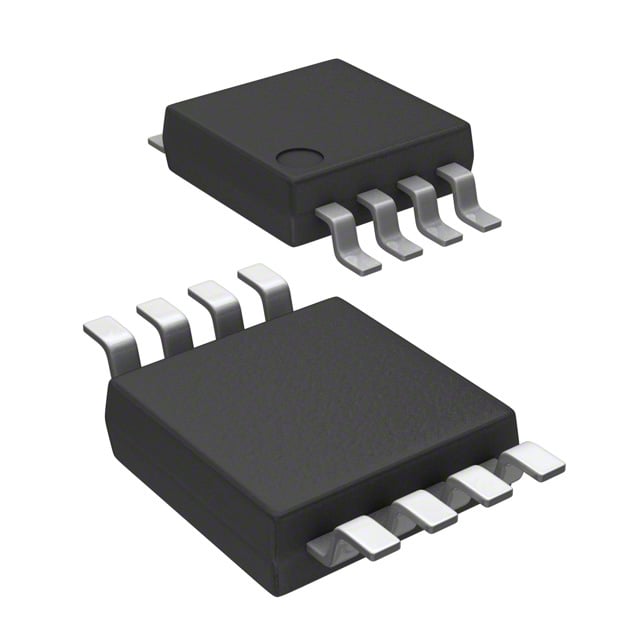

The MC100LVEL05DTR2G from On Semiconductor is a high-performance 2-input differential AND/NAND gate designed for low voltage applications. It offers a fast propagation delay of 340 ps, making it suitable for demanding AC performance requirements.
This device operates within a PECL mode supply voltage range of 3.0 V to 3.8 V. The differential inputs and outputs allow it to be utilized as a 2-input differential OR/NOR gate as well. It includes internal input pulldown resistors and features ESD protection exceeding 4 kV (Human Body Mode).
The MC100LVEL05DTR2G is available in an 8-TSSOP package, suitable for surface mount applications. It meets JEDEC specifications for IC latchup and is RoHS compliant, halogen-free, and Pb-free.
Key features include temperature compensation inherent in the 100 Series, and the Q output defaults LOW with all inputs open or at VEE. This component is ideal for applications requiring high-speed logic functions at low power supply voltages.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.39 | $0.39 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
340 ps typical.
3.0V to 3.8V in PECL mode, -3.8V to -3.0V in NECL mode.
-40°C to 85°C.
>4 kV HBM and >200 V MM.
8-TSSOP, surface mount.
Yes, it is lead-free and halogen-free.
69 devices.
