MC100EP29MNG The ON Semiconductor MC100EP29MNG is a dual D-type flip-flop with asynchronous Set and Reset inputs. It features a maximum frequency of 3 GHz and typical propagation delays of 500 ps.
Mfr Part #:

MC100EP29MNG

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
The ON Semiconductor MC100EP29MNG is a dual D-type flip-flop with asynchronous Set and Reset inputs. It features a maximum frequency of 3 GHz and typical propagation delays of 500 ps.
✓ Total Stock: 1,932 pcs
$ Price Range: $0.86

MC100EP29MNG Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
1,932 pcs
On Request
1932 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MC100EP29MNG Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Clock Frequency
Current
Current Consumption
Function
Lead Style
Mounting Type
Number of Bits per Element
Number of Elements
Operating Temperature
Output Type
Propagation Delay
Supplier Device Package
Trigger Type
Type
Voltage
View Similar Products (0)

MC100EP29MNG Description

Short technical summary and product information.

The ON Semiconductor MC100EP29MNG is a dual master-slave D-type flip-flop designed for high-speed applications. It features fully differential data and clock inputs, as well as outputs. The device operates with a voltage range of 3.0 V to 5.5 V in PECL mode and -3.0 V to -5.5 V in NECL mode.



Key electrical characteristics include a maximum clock frequency exceeding 3 GHz and typical propagation delays of 500 ps. The flip-flop includes asynchronous, overriding Set and Reset inputs, with the condition that Set and Reset cannot both be HIGH simultaneously. The device offers open input stability and safety clamps on inputs.

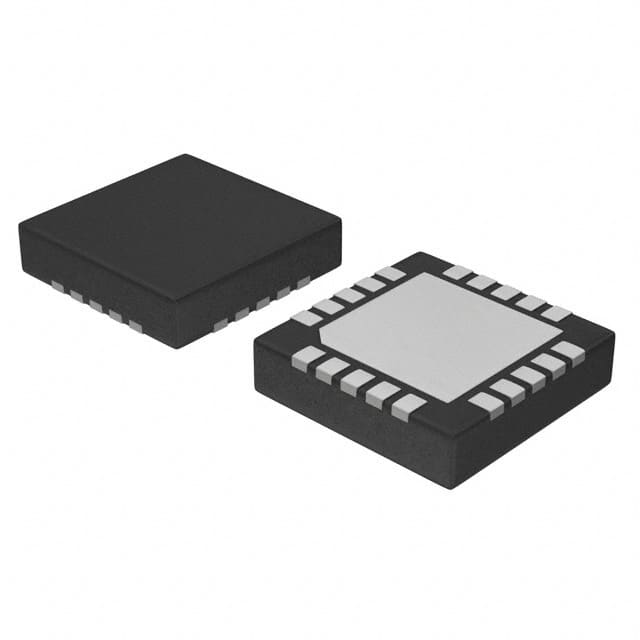

This component is available in a 20-QFN (4x4) package with surface mount mounting type. It is suitable for applications requiring fast data handling and clock synchronization. The operating temperature range is -40°C to 85°C (TA).

MC100EP29MNG Quick Information

Product Type: D-Type Flip-Flop
Series: 100EP
Canonical Name: MC100EP29MNG Dual Differential Data and Clock D Flip-Flop with Set and Reset
Subcategory: D-Type Flip-Flop

MC100EP29MNG Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Pb-Free

MC100EP29MNG Estimated Pricing

Qty Low High
1+ $0.86 $0.86

Estimated market price range - modelled values for guidance only, not live distributor offers.

MC100EP29MNG Features

  • Dual D-Type Flip-Flop with Set/Reset
  • Maximum frequency exceeds 3 GHz
  • Typical propagation delay of 500 ps
  • 3.0V to 5.5V operating voltage range
  • Surface mount 20-QFN package

MC100EP29MNG Applications

  • High-speed data synchronization
  • Digital signal processing
  • Clock distribution circuits
  • Fast logic implementations

MC100EP29MNG FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the MC100EP29MNG?

The operating voltage for the MC100EP29MNG is 3.0 V to 5.5 V in PECL mode and -3.0 V to -5.5 V in NECL mode.

What is the maximum clock frequency of the MC100EP29MNG?

The maximum clock frequency for the MC100EP29MNG is greater than 3 GHz.

What is the typical propagation delay for this flip-flop?

The typical propagation delay for the MC100EP29MNG is 500 ps.

What package type is the MC100EP29MNG supplied in?

The MC100EP29MNG is supplied in a 20-QFN (4x4) package with surface mount mounting.

What is the operating temperature range for the MC100EP29MNG?

The operating temperature range for the MC100EP29MNG is -40°C to 85°C (TA).

Does the MC100EP29MNG have Set and Reset functions?

Yes, the MC100EP29MNG features asynchronous, overriding Set and Reset inputs.
