Mfr Part #:

MC100EP195BMNG

The MC100EP195BMNG is a programmable delay chip from On Semiconductor designed for clock deskewing and timing adjustment. It offers a delay range of 2.2 ns to 12.2 ns with 10 ps increments.

✓ Total Stock: 364 pcs

$ Price Range: $0.20

MC100EP195BMNG Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Xingangxin ✓ Non-Authorised Inventory information	364 pcs On Request	364 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

MC100EP195BMNG Description

Short technical summary and product information.

The MC100EP195BMNG is a 3.3 V ECL Programmable Delay Chip (PDC) from On Semiconductor, primarily used for clock deskewing and timing adjustments. It provides a variable delay for differential NECL/PECL input transitions.

The delay section features a programmable matrix of gates and multiplexers, offering digitally selectable resolutions of approximately 10 ps. The chip has a net delay range of up to 10.2 ns, with a fixed minimum delay of 2.2 ns. The delay is selected via 10 data select inputs (D[9:0]) and controlled by the LEN pin. The IN/IN inputs can accept LVPECL or LVDS level signals.

This device operates within a PECL mode voltage range of 3.0 V to 3.6 V (with VEE = 0 V) and an NECL mode range of VCC = 0 V with VEE = -3.0 V to -3.6 V. It has a typical maximum input clock frequency exceeding 1.2 GHz.

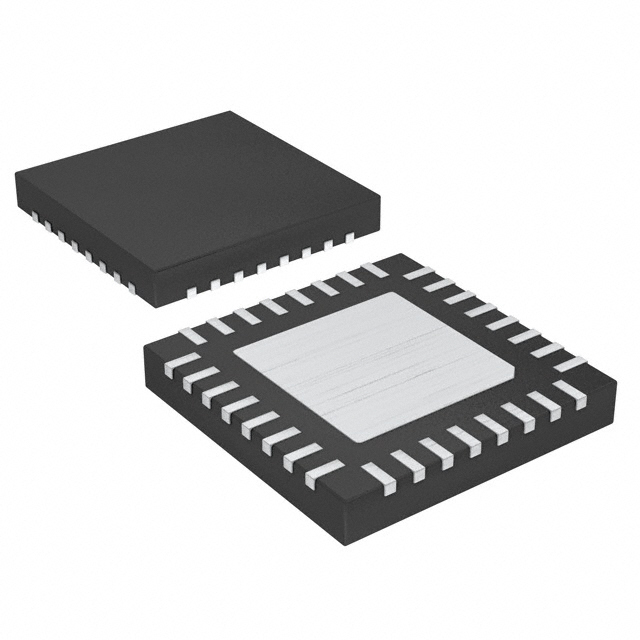

The MC100EP195BMNG is available in a 32-VFQFN Exposed Pad package and is designed for surface mounting. The operating temperature is specified up to 85°C.

MC100EP195BMNG Quick Information

Product Type: Programmable Delay Chip

Canonical Name: MC100EP195BMNG Programmable Delay Chip

MC100EP195BMNG Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

MC100EP195BMNG Estimated Pricing

Qty	Low	High
1+	$0.20	$0.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

MC100EP195BMNG Features

Programmable delay chip for timing adjustments.
Delay range from 2.2 ns to 12.2 ns.
Fine 10 ps delay increments.
Supports LVPECL, LVNECL, and LVDS inputs.
Surface mount 32-VFQFN package.

MC100EP195BMNG Applications

Ideal for clock deskewing applications.
Used for precise timing adjustments.
Suitable for high-speed digital systems.
Facilitates signal integrity improvements.

MC100EP195BMNG FAQs

5 frequently asked questions generated from this part’s specifications.

What is the programmable delay range of the MC100EP195BMNG?

The programmable delay range is from 2.2 ns to 12.2 ns.

What is the delay increment for the MC100EP195BMNG?

The delay increment is 10 ps.

What is the operating voltage range for the MC100EP195BMNG?

The operating voltage range is 3.0 V to 3.6 V in PECL mode.

What type of package is the MC100EP195BMNG in?

The MC100EP195BMNG is in a 32-VFQFN Exposed Pad package.

What is the operating temperature for the MC100EP195BMNG?

The operating temperature is up to 85°C.

Category	Delay Lines
Manufacturer Name	On Semiconductor
AEC Qualified	No
Automotive Grade	No
Available Total Delays	2.5ns ~ 13ns
Delay Time	2.5 ns
Delay to 1st Tap	2.5ns
Function	Programmable
Industrial Grade	No
Medical Grade	No
Military Grade	No
Mounting Type	Surface Mount
Number of Independent Delays	1
Number of Taps	1024
Operating Temperature	85°C
Supplier Device Package	32-QFN (5x5)
Tap Increment	10 ps
Tape & Reel	No
Voltage	3.0 V to 3.6 V
